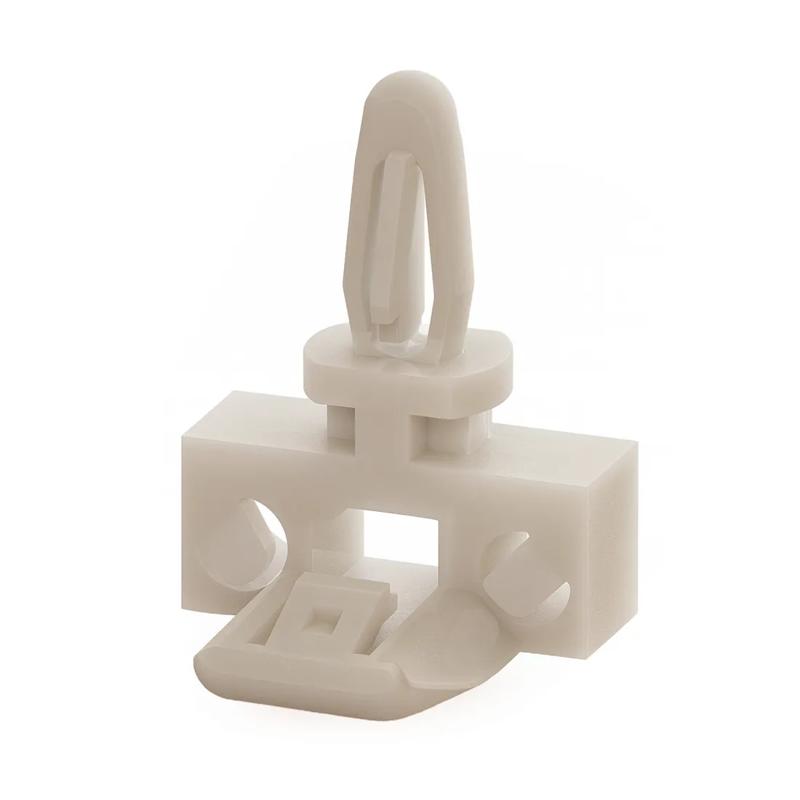

SRSMLCBS - Side Mount Locking Circuit Board Support
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height A | Maximum Panel Thickness B | Exposed End Diameter | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMLCBS-6-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 0.157 | 0.375 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
SMLCBS-8-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 0.157 | 0.500 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
SMLCBS-8-19 | UL94 V-0 | Locking Bayonet Fix | Natural | 0.157 | 0.500 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
SMLCBS-6-19 | UL94 V-0 | Locking Bayonet Fix | Natural | 0.157 | 0.375 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
SMLCBS-7-19 | UL94 V-0 | Locking Bayonet Fix | Natural | 0.157 | 0.437 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
SMLCBS-5-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 0.157 | 0.313 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
SMLCBS-5-19 | UL94 V-0 | Locking Bayonet Fix | Natural | 0.157 | 0.313 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
SMLCBS-7-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 0.157 | 0.437 in | Locking Side Mount Fix | 0.400 in | 0.062 in | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
SMLCBS-6-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
0.157
SMLCBS-8-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
0.157
SMLCBS-8-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
0.157
SMLCBS-6-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
0.157
Per page:
1–5 of 9
