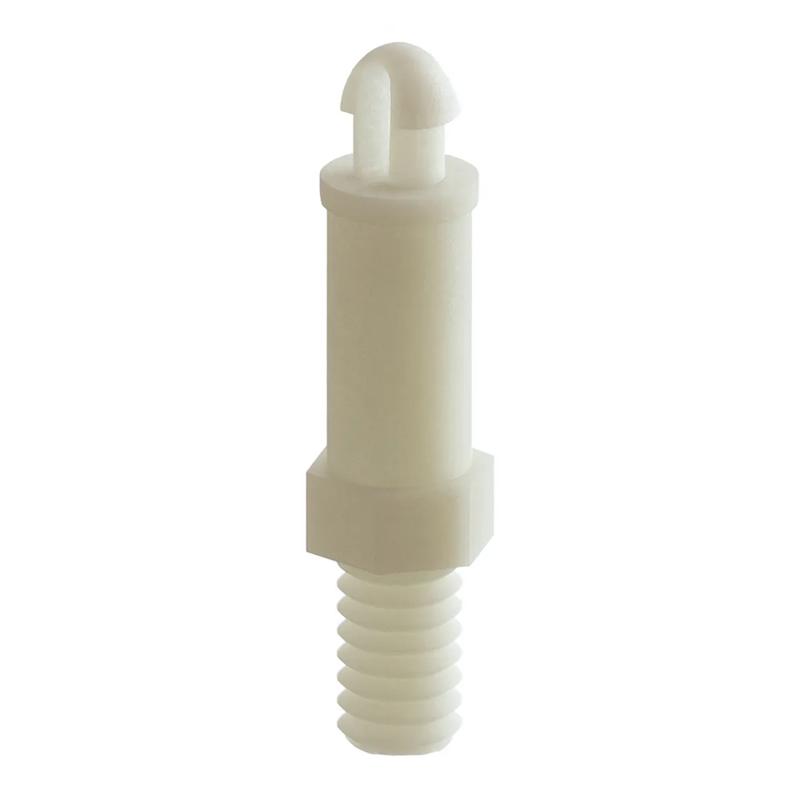

SRSCBST - Male Threaded Locking PCB Support
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Distance Across Flats | Thread Length | Locking Head Height A | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCBST-6-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 9.5 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-9-01 | UL94 V-2 | Snap Lock | Natural | 0.170 in | 0.100 in | 0.563 in | Male Thread Fix | 0.189 | 0.250 in | 0.080 in | -40 °F | #6-32 | Nylon 6/6 | 0.064 | 185 °F | - | |
SCBST-10-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 15.9 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-7-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 11.1 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-4-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 6.4 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-5-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 7.9 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-8-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 12.7 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-3-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 4.8 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - | |
SCBST-2-01 | UL94 V-2 | Snap Lock | Natural | 4.4 mm | 2.5 mm | 3.2 mm | Male Thread Fix | 4.8 mm | 6.4 mm | 2.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | 85 | - |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
SCBST-6-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
4.4 mm
SCBST-9-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.170 in
SCBST-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
4.4 mm
SCBST-7-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
4.4 mm
Per page:
1–5 of 10
