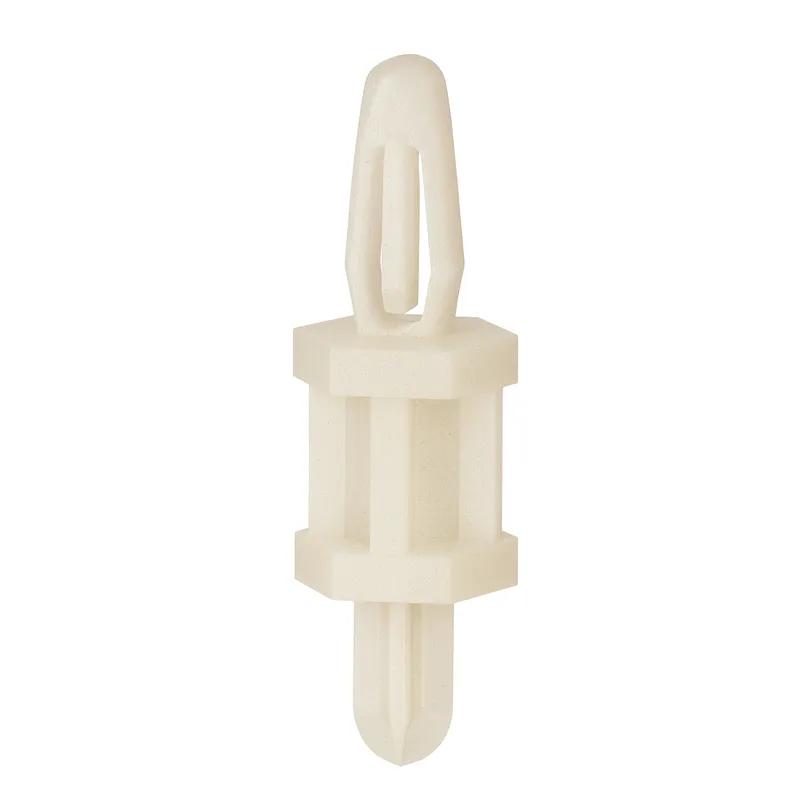

SRSCBSST - Male Self-Threading Locking PCB Support
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Hole Diameter A | Spacer Length | Hole B Fix Type | Distance Across Flats | Thread Length | Locking Head Height A | Maximum Panel Thickness B | Exposed End Diameter | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCBSST-10-01 | UL94 V-2 | Snap Lock | Natural | 0.156 | 0.625 in | Male Thread Fix | 0.310 in | 0.250 in | 0.400 in | 0.063 in | - | -40 °F | #8, M4 | Nylon 6/6 | 0.062 in | 185 °F | |
SCBSST-12-01 | UL94 V-2 | Snap Lock | Natural | 0.156 | 0.750 in | Male Thread Fix | 0.310 in | 0.250 in | 0.400 in | 0.063 in | - | -40 °F | #8, M4 | Nylon 6/6 | 0.062 in | 185 °F | |
SCBSST-22.5-01 | UL94 V-2 | Snap Lock | Natural | 0.156 | 1.406 in | Male Thread Fix | 0.310 in | 0.250 in | 0.400 in | 0.063 in | - | -40 °F | #8, M4 | Nylon 6/6 | 0.062 in | 185 °F | |
SCBSST-4-01 | UL94 V-2 | Snap Lock | Natural | 0.156 | 0.250 in | Male Thread Fix | 0.310 in | 0.250 in | 0.400 in | 0.063 in | - | -40 °F | #8, M4 | Nylon 6/6 | 0.062 in | 185 °F | |
SCBSST-16-01 | UL94 V-2 | Snap Lock | Natural | 0.156 | 1.000 in | Male Thread Fix | 0.310 in | 0.250 in | 0.400 in | 0.063 in | - | -40 °F | #8, M4 | Nylon 6/6 | 0.062 in | 185 °F | |
SCBSST-18-01 | UL94 V-2 | Snap Lock | Natural | 4.0 | 28.6 | Male Thread Fix | 7.9 | 6.4 | 10.2 | - | - | -40 | #8, M4 | Nylon 6/6 | 1.6 | 85 | |
SCBSST-8-01 | UL94 V-2 | Snap Lock | Natural | 4.0 | 12.7 | Male Thread Fix | 7.9 | 6.4 | 10.2 | - | - | -40 | #8, M4 | Nylon 6/6 | 1.6 | 85 | |
SCBSST-14-01 | UL94 V-2 | Snap Lock | Natural | 4.0 | 22.2 | Male Thread Fix | 7.9 | 6.4 | 10.2 | - | - | -40 | #8, M4 | Nylon 6/6 | 1.6 | 85 | |
SCBSST-6-01 | UL94 V-2 | Snap Lock | Natural | 4.0 | 9.5 | Male Thread Fix | 7.9 | 6.4 | 10.2 | - | - | -40 | #8, M4 | Nylon 6/6 | 1.6 | 85 |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
SCBSST-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.156
SCBSST-12-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.156
SCBSST-22.5-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.156
SCBSST-4-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.156
Per page:
1–5 of 10
