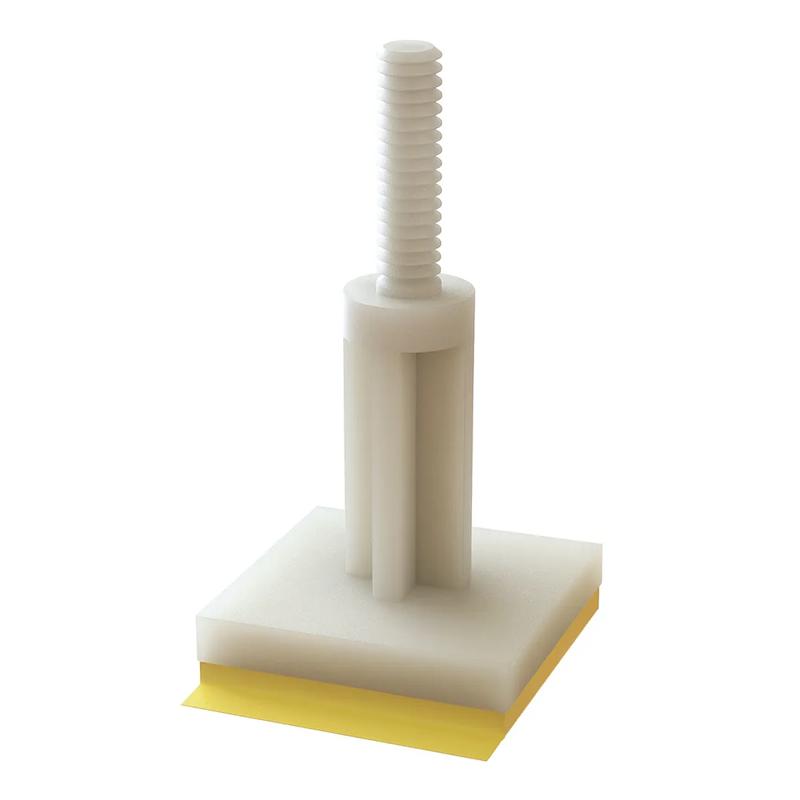

SRSCBSB - Adhesive Mount Male Threaded PCB Support
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Spacer Length | Hole B Fix Type | Base Width | Thread Length | Base Length | Exposed End Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Thread Size | Material | Base Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCBSB-12-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.750 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-10-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.625 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-6-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.375 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-16-01A-RT | UL94 V-2 | Stud Fix | Natural | 1.000 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-18-01A-RT | UL94 V-2 | Stud Fix | Natural | 1.125 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-14-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.875 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-4-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.250 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive | |
SCBSB-8-01A-RT | UL94 V-2 | Stud Fix | Natural | 0.500 in | Adhesive Fix | 0.700 in | 0.300 in | 0.700 in | - | 185 °F | 32 | #6-32 | Nylon 6/6 | Acrylic-Based Adhesive |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
SCBSB-12-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Stud Fix
Color
Natural
Spacer Length
0.750 in
SCBSB-10-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Stud Fix
Color
Natural
Spacer Length
0.625 in
SCBSB-6-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Stud Fix
Color
Natural
Spacer Length
0.375 in
SCBSB-16-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Stud Fix
Color
Natural
Spacer Length
1.000 in
Per page:
1–5 of 9
