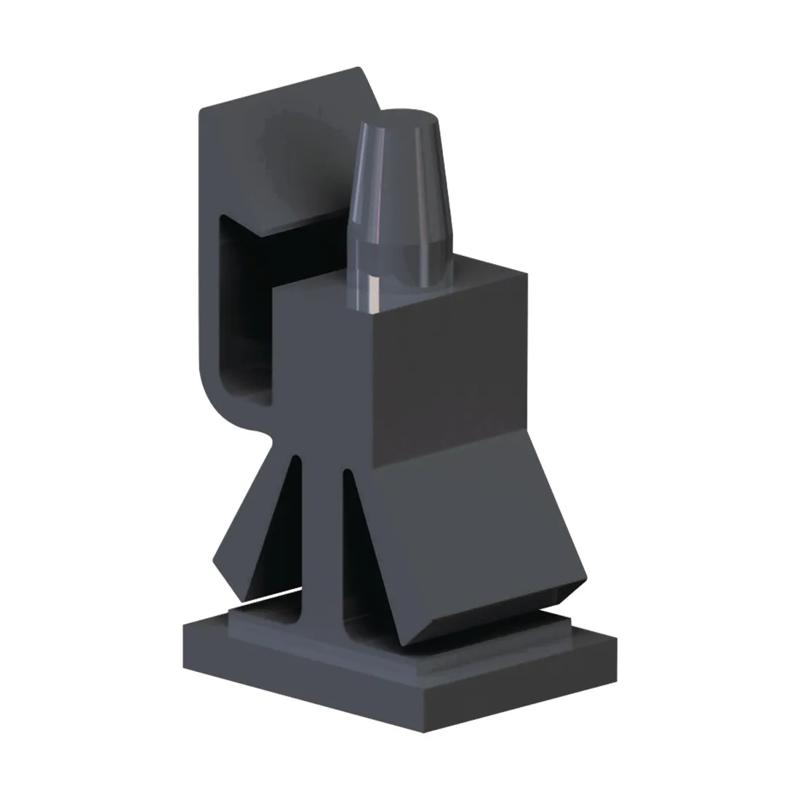

SRRLEHCBS - Reverse Locking Edge Holding Circuit Board Support
Item Code | Panel Width | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Dome Length | Locking Head Height A | Dome Width | Hole Diameter B | Color | Minimum Operating Temperature | Material | Dome Thickness | Locking Head Height B | Arm Length | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RLEHCBS-7-01BK | 5.08 mm | 1.6 mm | UL94 V-2 | Edge Holding Snap Fit Fix | 4.0 | 12.7 | Snap Lock Fix | 11.9 mm | 5.8 | 9.5 mm | 7.9 x 9.5 mm | Black | -40 | Nylon 6/6 | 1.6 mm | 5.8 | 2.1 | 1.6 | 1.6 mm | 1.6 | 85 | |
RLEHCBS-8-01BK | 5.08 mm | 1.6 mm | UL94 V-2 | Edge Holding Snap Fit Fix | 4.0 | 14.3 | Snap Lock Fix | 11.9 mm | 5.8 | 9.5 mm | 7.9 x 9.5 mm | Black | -40 | Nylon 6/6 | 1.6 mm | 5.8 | 2.1 | 1.6 | 1.6 mm | 1.6 | 85 | |
RLEHCBS-5-01BK | 5.08 mm | 1.6 mm | UL94 V-2 | Edge Holding Snap Fit Fix | 4.0 | 9.5 | Snap Lock Fix | 11.9 mm | 5.8 | 9.5 mm | 7.9 x 9.5 mm | Black | -40 | Nylon 6/6 | 1.6 mm | 5.8 | 1.5 | 1.6 | 1.6 mm | 1.6 | 85 | |
RLEHCBS-6-01BK | 5.08 mm | 1.6 mm | UL94 V-2 | Edge Holding Snap Fit Fix | 4.0 | 11.1 | Snap Lock Fix | 11.9 mm | 5.8 | 9.5 mm | 7.9 x 9.5 mm | Black | -40 | Nylon 6/6 | 1.6 mm | 5.8 | 1.5 | 1.6 | 1.6 mm | 1.6 | 85 |
