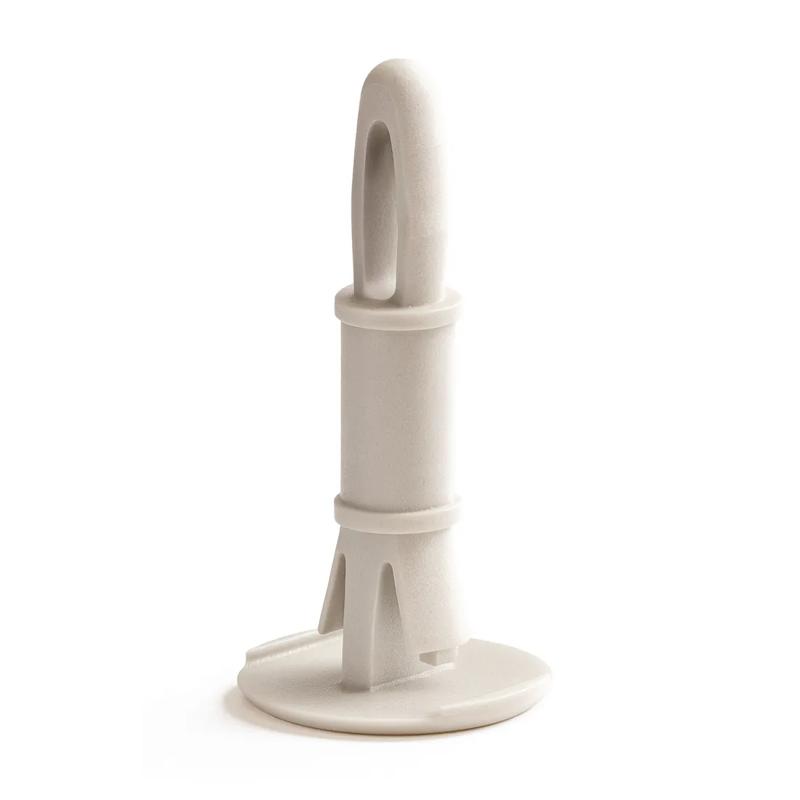

SRRCBSR - Reverse Mount Non-Locking PCB Support
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Body Diameter | UL/CSA Description | Max. Hole Diameter A | Head Diameter | Max. Hole Diameter B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCBSR-5-01 | UL94 V-2 | Snap Lock | 3.2 mm | 7.9 mm | Snap Lock Fix | 9.5 mm | 8.7 | - | 4.8 mm | Natural | -40 °F | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 mm | 185 °F | - | - | - | - | - | |
RCBSR-4-01 | UL94 V-2 | Snap Lock | 3.2 | 6.4 | Snap Lock Fix | 1.5 | 8.7 | - | 4.8 | Natural | -40 | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 | 85 | 4.4 mm | UL E70062 | 3.18 mm | 9.5 mm | 4.75 mm | |
RCBSR-6-01 | UL94 V-2 | Snap Lock | 3.2 | 9.5 | Snap Lock Fix | 1.5 | 8.7 | - | 4.8 | Natural | -40 | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 | 85 | 4.4 mm | UL E70062 | 3.18 mm | 9.5 mm | 4.75 mm | |
RCBSR-8-01 | UL94 V-2 | Snap Lock | 3.2 | 12.7 | Snap Lock Fix | 1.5 | 8.7 | - | 4.8 | Natural | -40 | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 | 85 | 4.4 mm | UL E70062 | 3.18 mm | 9.5 mm | 4.75 mm | |
RCBSR-10-01 | UL94 V-2 | Snap Lock | 3.2 | 15.9 | Snap Lock Fix | 1.5 | 8.7 | - | 4.8 | Natural | -40 | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 | 85 | 4.4 mm | UL E70062 | 3.18 mm | 9.5 mm | 4.75 mm | |
RCBSR-9-01 | UL94 V-2 | Snap Lock | 3.2 | 14.3 | Snap Lock Fix | 1.5 | 8.7 | - | 4.8 | Natural | -40 | Nylon 6/6 | 2 | 1.6 | 1.5 mm | 1.6 | 85 | 4.4 mm | UL E70062 | 3.18 mm | 9.5 mm | 4.75 mm |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
RCBSR-5-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Hole Diameter A
3.2 mm
Spacer Length
7.9 mm
RCBSR-4-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Body Diameter
4.4 mm
Hole Diameter A
3.2
RCBSR-6-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Body Diameter
4.4 mm
Hole Diameter A
3.2
RCBSR-8-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Body Diameter
4.4 mm
Hole Diameter A
3.2
Per page:
1–5 of 7
