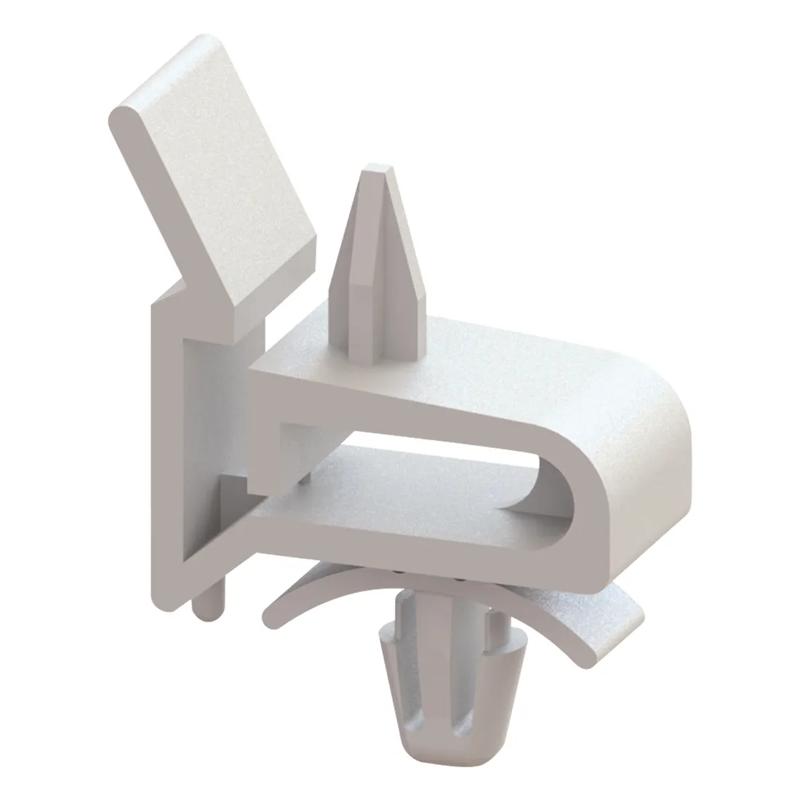

SRPCBEH - Edge Holding Circuit Board Support
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height A | Maximum Panel Thickness B | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PCBEH-14-01 | UL94 V-2 | Unlocking Fix | 0.157 in | 0.910 | Clip Fix | 0.290 in | 0.062 | - | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 230 | |
PCBEH-10-01 | UL94 V-2 | Unlocking Fix | 0.157 in | 0.661 | Clip Fix | 0.290 in | 0.062 | - | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
PCBEH-7-01 | UL94 V-2 | Unlocking Fix | 0.157 in | 0.470 | Clip Fix | 0.290 in | 0.063 | - | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.062 | 185 °F |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
PCBEH-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157 in
Spacer Length
0.910
PCBEH-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157 in
Spacer Length
0.661
PCBEH-7-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157 in
Spacer Length
0.470
