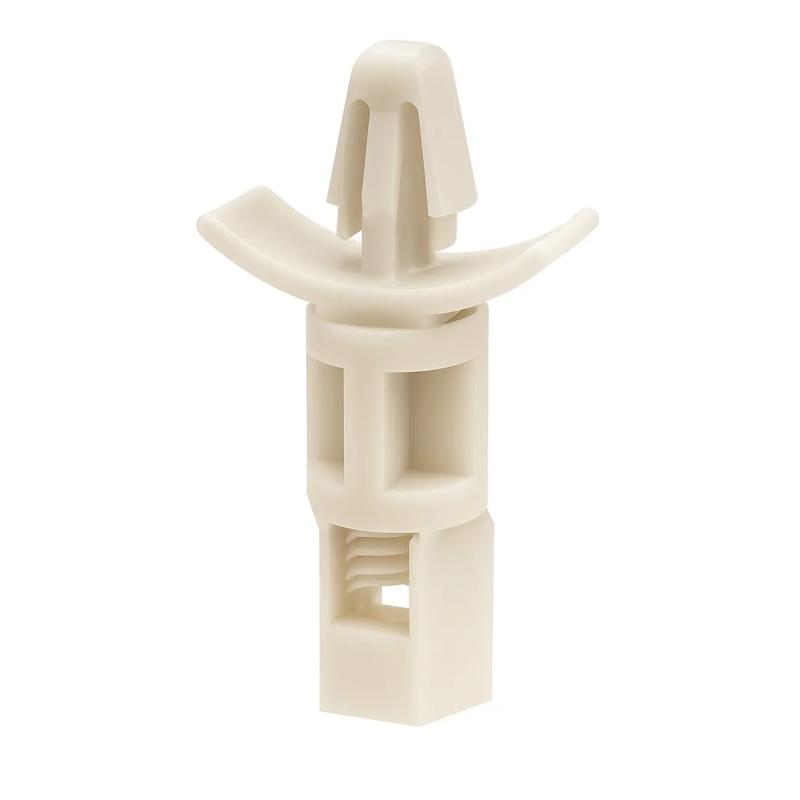

SRLCCBS-TF - Female Threaded Locking PCB Support
Showing 1-10 of 10
Per page:1-10 of 10
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Distance Across Flats | Locking Head Height A | Exposed End Diameter | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCCBS-TF-16-19 | UL94 V-0 | Snap Lock | Natural | 0.280 in | 0.187 in | 1.047 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
LCCBS-TF-14-01 | UL94 V-2 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.922 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
LCCBS-TF-14-19 | UL94 V-0 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.922 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
LCCBS-TF-9-01 | UL94 V-2 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.534 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
LCCBS-TF-9-19 | UL94 V-0 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.534 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
LCCBS-TF-12-19 | UL94 V-0 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.797 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F | |
LCCBS-TF-16-01 | UL94 V-2 | Snap Lock | Natural | 0.280 in | 0.187 in | 1.047 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
LCCBS-TF-12-01 | UL94 V-2 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.797 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
LCCBS-TF-10-19 | UL94 V-0 | Snap Lock | Natural | 0.280 in | 0.187 in | 0.672 in | Female Thread Fix | 0.280 in | 0.219 | - | -40 °F | Nylon 6/6 | 0.062 in | 230 °F |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
LCCBS-TF-16-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.280 in
LCCBS-TF-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.280 in
LCCBS-TF-14-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.280 in
LCCBS-TF-9-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
0.280 in
Per page:
1–5 of 11
