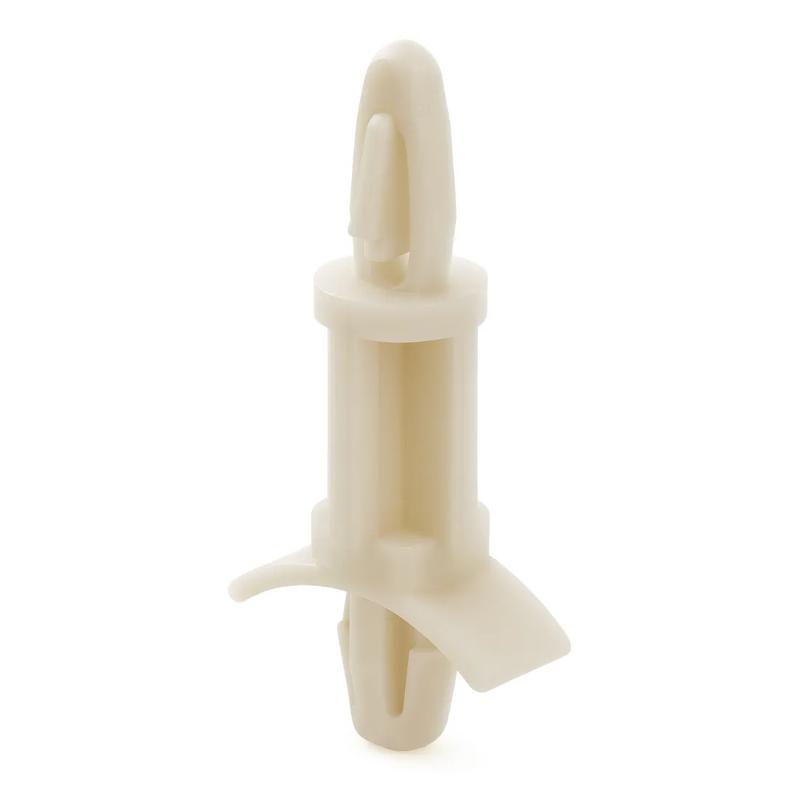

SRLCBSA-6 - Locking PCB Support
Showing 1-10 of 26
Per page:1-10 of 26
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Strap Width | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCBSA-6-14-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 22.2 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C | |
LCBSA-6-12-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 19.1 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C | |
LCBSA-6-10-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 15.9 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C | |
LCBSA-6-10-19 | UL94 V-0 | Locking Bayonet Fix | 7.1 mm | 4.0 | 15.9 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 110 °C | |
LCBSA-6-16-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 25.4 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C | |
LCBSA-6-16-19 | UL94 V-0 | Locking Bayonet Fix | 7.1 mm | 4.0 | 25.4 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 110 °C | |
LCBSA-6-20-19 | UL94 V-0 | Locking Bayonet Fix | 7.1 mm | 4.0 | 31.8 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 110 °C | |
LCBSA-6-4-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 6.4 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C | |
LCBSA-6-22-01 | UL94 V-2 | Locking Bayonet Fix | 7.1 mm | 4.0 | 34.9 mm | Locking Arrowhead Fix | 5.6 mm | 10.9 mm | 13.9 mm | - | 4.75 mm | Natural | -40 °C | Nylon 6/6 | 1 | 3.58 mm | 1.98 mm | 2.4 mm | 85 °C |
Per page:
1-10 of 26
1–5 of 26 variants
Per page:
LCBSA-6-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1 mm
Hole Diameter A
4.0
LCBSA-6-12-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1 mm
Hole Diameter A
4.0
LCBSA-6-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1 mm
Hole Diameter A
4.0
LCBSA-6-10-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1 mm
Hole Diameter A
4.0
Per page:
1–5 of 27
