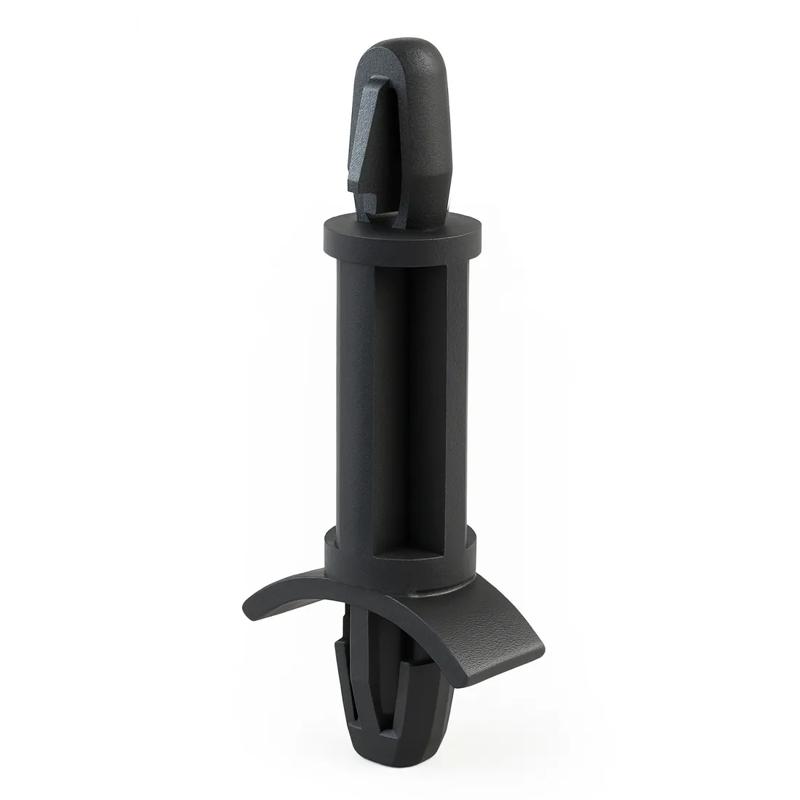

SRLCBS-HT - Locking PCB Support High Temperature
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Gap Width | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Strap Width | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCBS-16-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 25.4 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-18-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 28.6 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-14-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 22.2 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-10-HT | 1.57 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 15.9 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-4-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 6.4 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-6-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 9.5 | UL E247337 | Locking Arrowhead Fix | 5.6 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-20-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 31.7 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-5-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 7.9 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - | |
LCBS-3-HT | 0.062 in | UL94 V-0 | Locking Bayonet Fix | 7.1 | 4.0 | 4.8 | UL E247337 | Locking Arrowhead Fix | 5.3 | 10.2 | 3.0 mm | Locking Circuit Board Support | 4.8 | Black | -40 | PES | 13.0 mm | 1 | 2.0 | 0.8 mm | 1.57 | 200 | - |
LCBS-16-HT
Minimum Panel Thickness A
0.062 in
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1
LCBS-18-HT
Minimum Panel Thickness A
0.062 in
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1
LCBS-14-HT
Minimum Panel Thickness A
0.062 in
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1
LCBS-10-HT
Minimum Panel Thickness A
1.57 in
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Locking Bayonet Fix
Body Diameter
7.1
