Item Code | Material Flammability Standard | Hole A Fix Type | Color | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Maximum Panel Thickness B | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Maximum Mounting Hole Size | Exposed End Diameter | Minimum Mounting Hole Size | Hole Spacing (Center to Center) | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

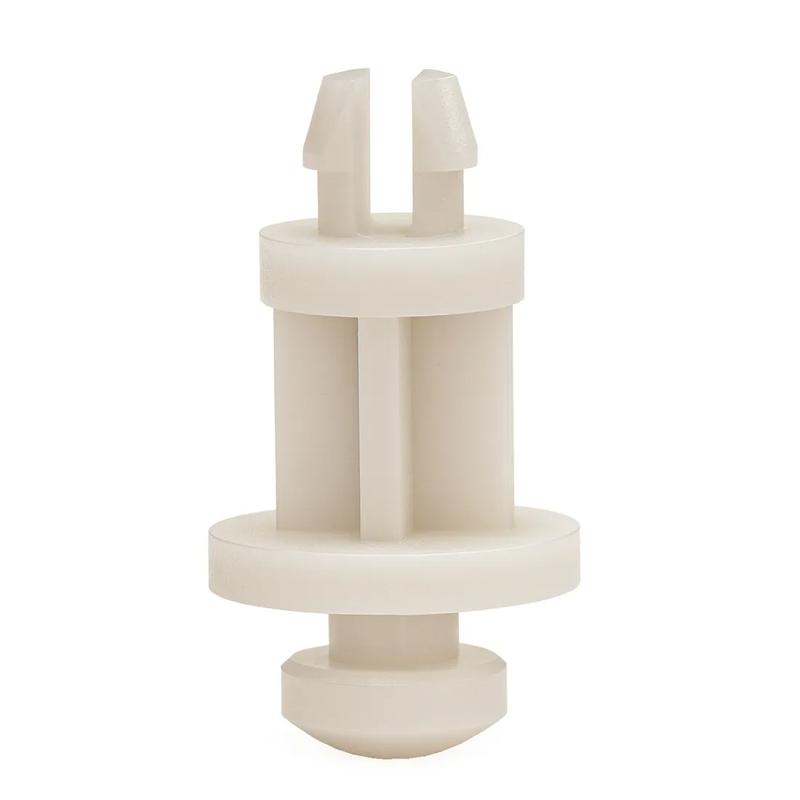

KSLSP1-6-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 9.5 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP1-8-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 12.7 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP1-4-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 6.4 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP1-3-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 4.8 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP2-4-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 6.4 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP2-3-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 4.8 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP2-8-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 12.7 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP2-6-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 9.5 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - | |
KSLSP2-10-01 | UL94 V-2 | Locking Two Prong Fix | Natural | 7.1 mm | 4.0 | 15.9 | Key Hole Connector | 2.4 | 4.0 | 1.6 | -40 | Nylon 6/6 | 4.8 | 85 | - | - | - | - |
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Body Diameter
7.1 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Body Diameter
7.1 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Body Diameter
7.1 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Body Diameter
7.1 mm
