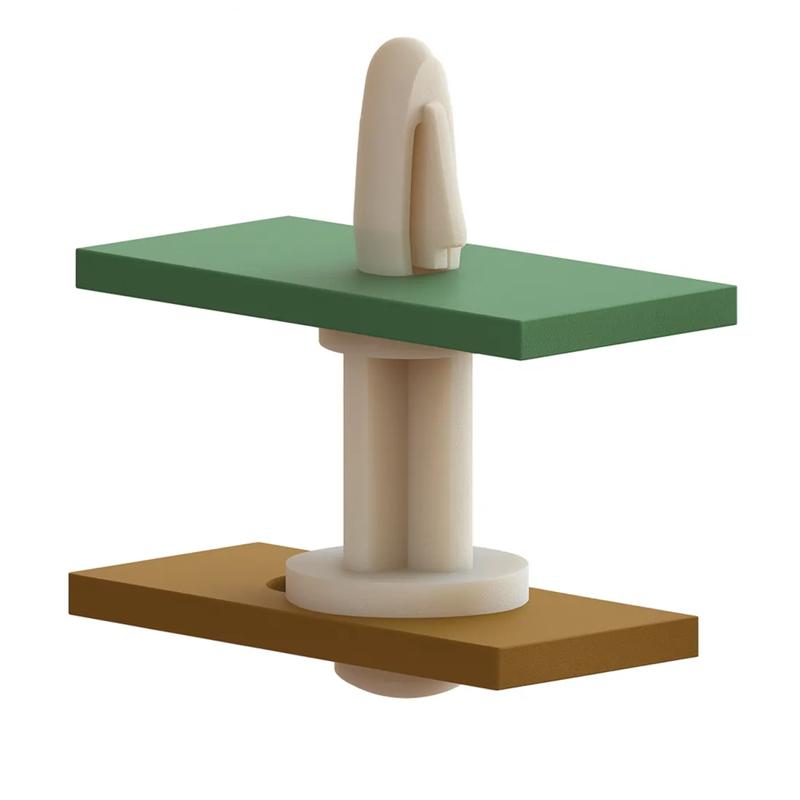

SRKSLBN - Key Slot Locking Bayonet Nose
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Hole Diameter A | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Maximum Panel Thickness B | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KSLBN-4-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 4.0 | 6.4 | UL E70062 | Key Hole Connector | 2.4 | 10.2 | 1.6 | -40 | Nylon 6/6 | 1.6 | 85 | |
KSLBN-2-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 4.0 | 3.2 | UL E70062 | Key Hole Connector | 2.4 | 10.2 | 1.6 | -40 | Nylon 6/6 | 1.6 | 85 | |
KSLBN-6-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 4.0 | 9.5 | UL E70062 | Key Hole Connector | 2.4 | 10.2 | 1.6 | -40 | Nylon 6/6 | 1.6 | 85 | |
KSLBN-8-01 | UL94 V-2 | Locking Bayonet Fix | Natural | 4.0 | 12.7 | UL E70062 | Key Hole Connector | 2.4 | 10.2 | 1.6 | -40 | Nylon 6/6 | 1.6 | 85 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
KSLBN-4-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
4.0
KSLBN-2-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
4.0
KSLBN-6-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
4.0
KSLBN-8-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Color
Natural
Hole Diameter A
4.0
