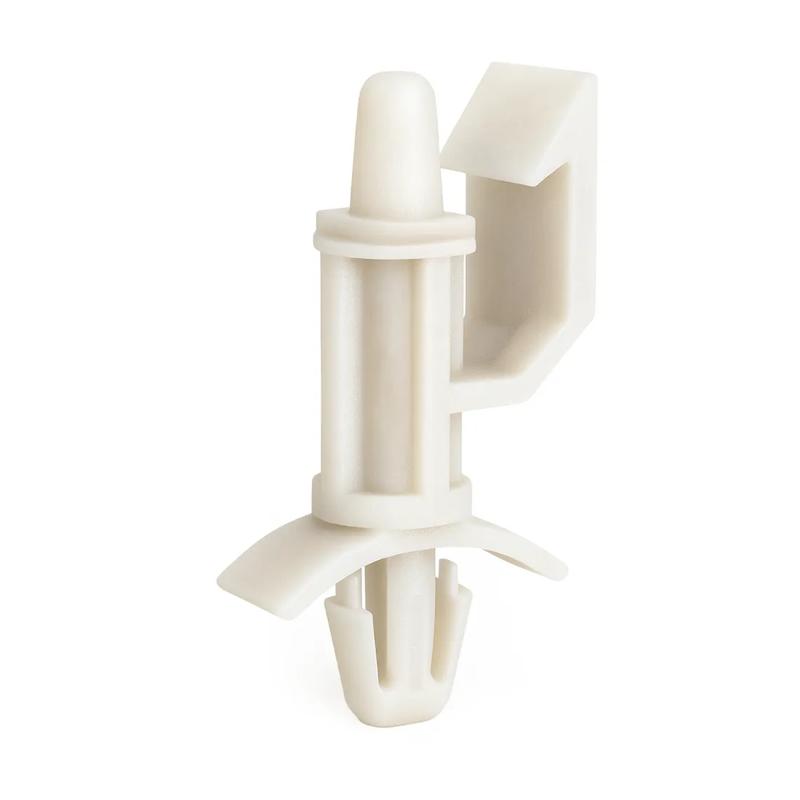

SREHCBS - Edge Holding Circuit Board Support
Showing 1-10 of 18
Per page:1-10 of 18
Item Code | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Arm Length | Locking Head Height A | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness B | Minimum Panel Thickness B | Exposed End Diameter | Nose/Clip Style | Maximum Panel Thickness A | Maximum Operating Temperature | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EHCBS-14-01 | UL94 V-2 | Unlocking Fix | 0.157 | 0.875 in | Snap Lock Fix | 0.290 | 0.600 in | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.078 | 0.031 in | - | Standard Nose,Standard Clip | 0.062 in | 185 °F | - | |
EHCBS-7-10-01 | UL94 V-2 | Unlocking Fix | 0.157 | 0.625 in | Snap Lock Fix | 0.290 | 0.240 in | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.078 | 0.031 in | - | Short Nose, Standard Clip | 0.062 in | 185 °F | - | |
EHCBS-7-14-01 | UL94 V-2 | Unlocking Fix | 0.157 | 0.875 in | Snap Lock Fix | 0.290 | 0.240 in | 0.187 in | Natural | -40 °F | Nylon 6/6 | 0.078 | 0.031 in | - | Short Nose, Standard Clip | 0.062 in | 185 °F | - | |
EHCBS-16-01 | UL94 V-2 | Unlocking Fix | 4.0 | 25.4 | Snap Lock Fix | 7.5 | 15.2 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Standard Nose,Standard Clip | 1.6 | 85 | UL E70062 | |
EHCBS-6-8-01 | UL94 V-2 | Unlocking Fix | 4.0 | 12.7 | Snap Lock Fix | 6.1 | 6.1 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Short Nose, Short Clip | 1.6 | 85 | UL E70062 | |
EHCBS-6-5-01 | UL94 V-2 | Unlocking Fix | 4.0 | 7.9 | Snap Lock Fix | 6.1 | 6.1 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Short Nose, Short Clip | 1.6 | 85 | UL E70062 | |
EHCBS-12-01 | UL94 V-2 | Unlocking Fix | 4.0 | 19.1 | Snap Lock Fix | 7.5 | 15.2 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Standard Nose,Standard Clip | 1.6 | 85 | UL E70062 | |
EHCBS-10-01 | UL94 V-2 | Unlocking Fix | 4.0 | 15.9 | Snap Lock Fix | 7.5 | 15.2 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Standard Nose,Standard Clip | 1.6 | 85 | UL E70062 | |
EHCBS-6-01 | UL94 V-2 | Unlocking Fix | 4.0 | 9.5 | Snap Lock Fix | 7.5 | 15.2 | 4.8 mm | Natural | -40 | Nylon 6/6 | 2.0 | 0.8 mm | - | Standard Nose,Standard Clip | 1.6 | 85 | UL E70062 |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
EHCBS-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157
Spacer Length
0.875 in
EHCBS-7-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157
Spacer Length
0.625 in
EHCBS-7-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
0.157
Spacer Length
0.875 in
EHCBS-16-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Unlocking Fix
Hole Diameter A
4.0
Spacer Length
25.4
Per page:
1–5 of 19
