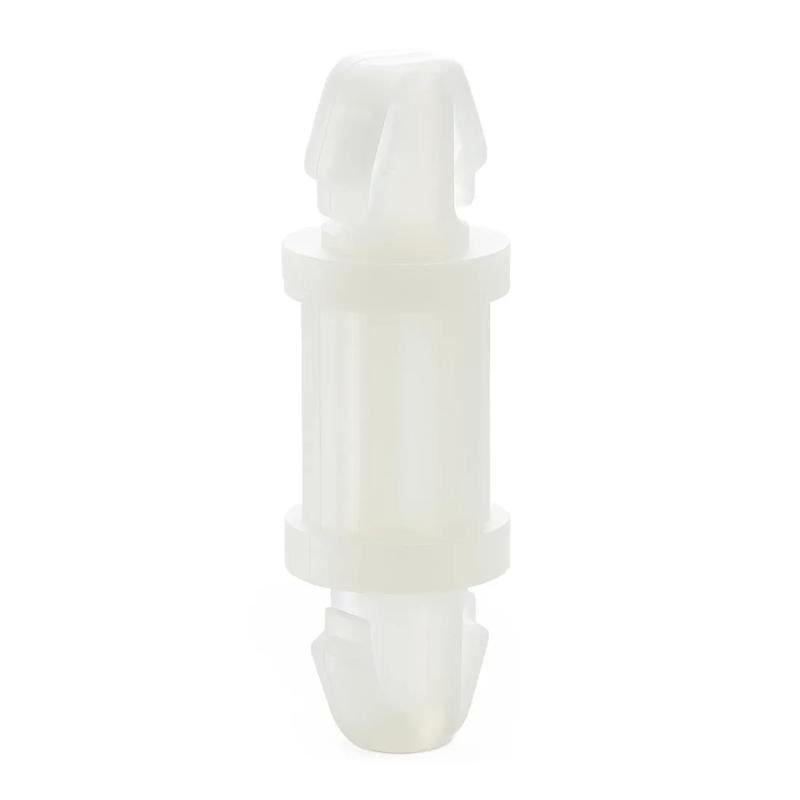

SRDLSP-3 - Locking Support Post
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DLSP-3-14M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 14.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 | |
DLSP-3-10M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 10.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 | |
DLSP-3-3M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 3.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 | |
DLSP-3-4M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 4.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 | |
DLSP-3-6M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 6.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 | |
DLSP-3-8M-01 | UL94 V-2 | Locking Arrowhead Fix | 6.0 | 4.0 | 8.0 | UL E70062 | Locking Arrowhead Fix | 3.7 | 3.15 | Dual Locking Support Post | 4.8 | Natural | -40 | Nylon 6/6 | DLSP-3 | 1.6 | 1.6 | 85 |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
DLSP-3-14M-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
6.0
Hole Diameter A
4.0
DLSP-3-10M-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
6.0
Hole Diameter A
4.0
DLSP-3-3M-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
6.0
Hole Diameter A
4.0
DLSP-3-4M-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
6.0
Hole Diameter A
4.0
Per page:
1–5 of 7
