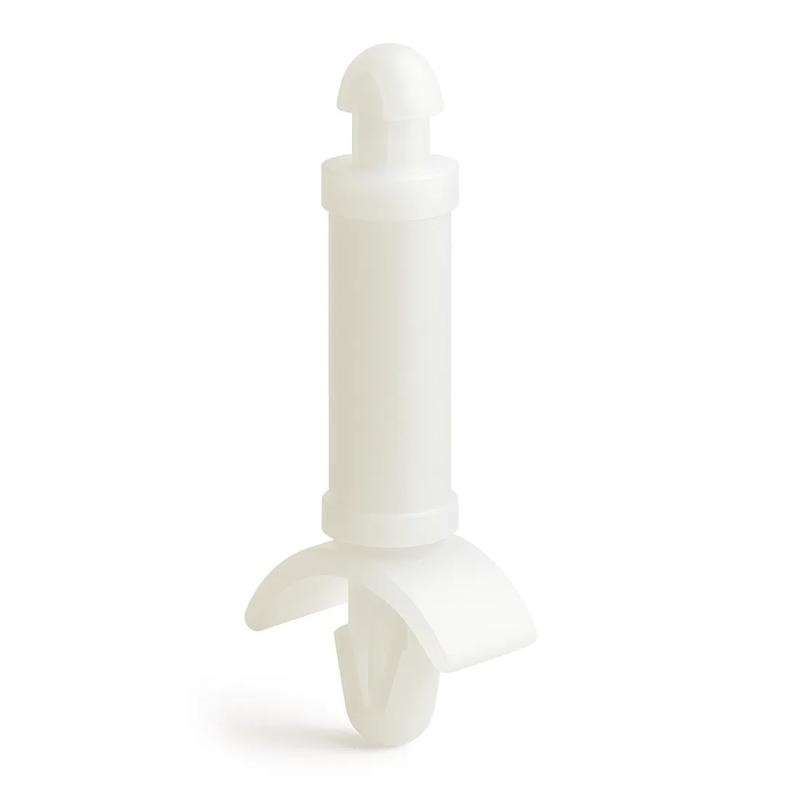

SRDLCBSAT - Dual Locking PCB Support
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Strap Width | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DLCBSAT-3-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 4.8 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-2-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 3.2 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-10-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 15.9 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-5-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 7.9 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-6-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 9.5 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-4-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 6.4 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-7-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 11.1 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-9-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 14.3 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 | |
DLCBSAT-8-01 | UL94 V-2 | Locking Teardrop Fix | 4.4 | 2.54 | 12.7 | Locking Arrowhead Fix | 4.0 | 2.0 | Dual Locking Circuit Board Support | 3.18 | Natural | -40 | Nylon 6/6 | 9.5 mm | 1 | 2.0 | 0.8 mm | 1.63 | 85 |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
DLCBSAT-3-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Teardrop Fix
Body Diameter
4.4
Hole Diameter A
2.54
DLCBSAT-2-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Teardrop Fix
Body Diameter
4.4
Hole Diameter A
2.54
DLCBSAT-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Teardrop Fix
Body Diameter
4.4
Hole Diameter A
2.54
DLCBSAT-5-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Teardrop Fix
Body Diameter
4.4
Hole Diameter A
2.54
Per page:
1–5 of 10
