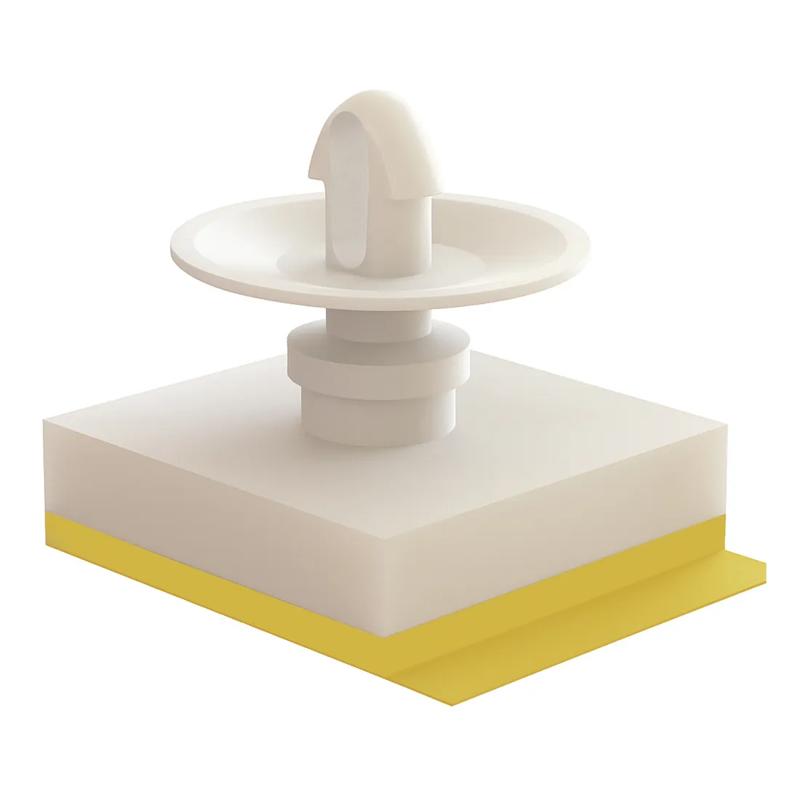

SRCCBSBT - Adhesive Mount Cupped PCB Support
Showing 1-7 of 7
Per page:1-7 of 7
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Hole Diameter A | Spacer Length | Hole B Fix Type | Base Width | Locking Head Height A | Base Length | Exposed End Diameter | Minimum Operating Temperature | Material | Base Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCBSBT-10-01A | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.625 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-6-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.375 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-9-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.563 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-4-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.250 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-5-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.313 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-8-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.500 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F | |
CCBSBT-7-01A-RT | UL94 V-2 | Snap Lock | Natural | 0.100 in | 0.438 in | Adhesive Fix | 0.500 in | 0.080 in | 0.500 in | - | 32 | Nylon 6/6 | Acrylic-Based Adhesive | 0.062 in | 185 °F |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
CCBSBT-10-01A
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.100 in
CCBSBT-6-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.100 in
CCBSBT-9-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.100 in
CCBSBT-4-01A-RT
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Hole Diameter A
0.100 in
Per page:
1–5 of 8
