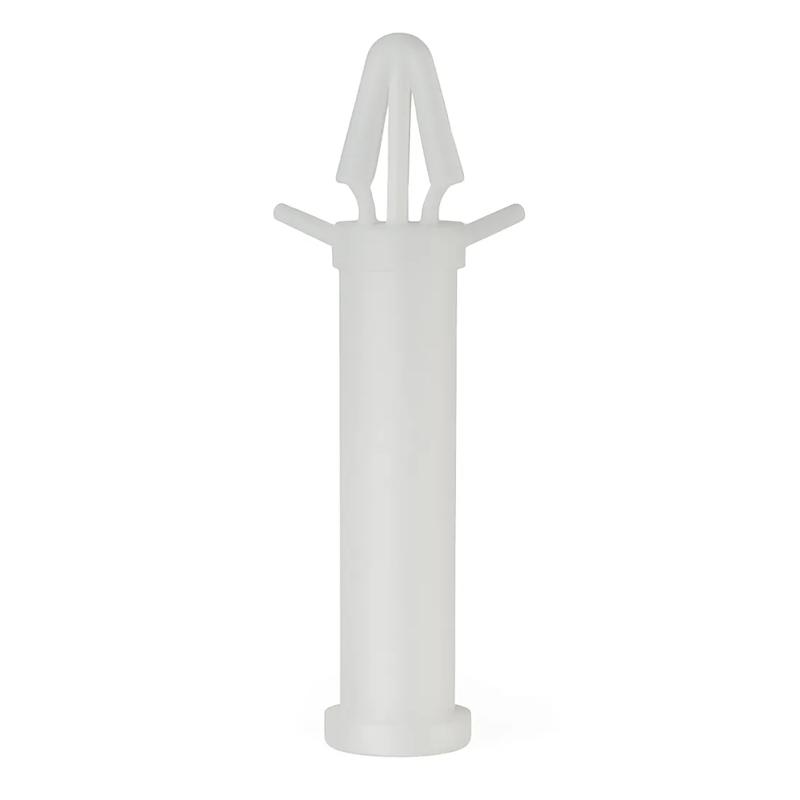

SRCBTFS - Metric Self-Tapping Locking PCB Support
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Color | Spacer Length | Hole B Fix Type | Distance Across Flats | Thread Type | Locking Head Height A | Style | Exposed End Diameter | Type | Hole Diameter | Hole Diameter A | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBTFS005A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 5.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS030A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 20.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS025A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 15.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS010A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 6.4 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS015A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 7.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS045A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 35.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS040A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 30.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS035A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 25.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F | |
CBTFS020A | 1.2 mm | UL94 V-2 | Snap Lock | Natural | 10.0 | Female Thread Fix | 6.9 mm | Metric | 7.4 mm | 3 | - | Female | 4.0 | 0.157 in | -40 °F | M3 | Nylon 6/6 | 1.7 mm | 185 °F |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
CBTFS005A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
CBTFS030A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
CBTFS025A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
CBTFS010A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
