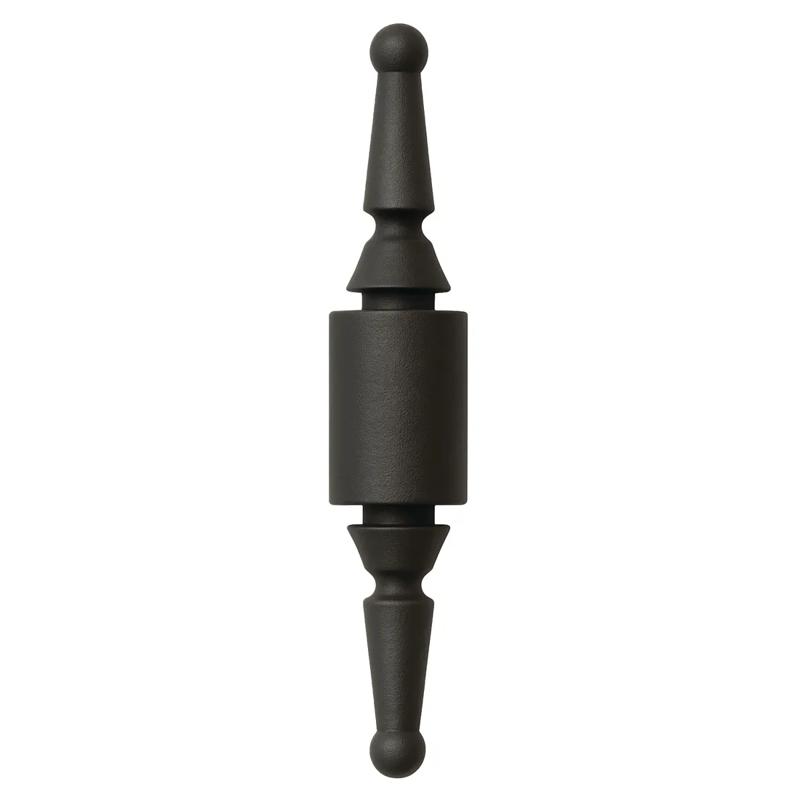

SRCBSPM - Rubber Pull Mount Circuit Board Support
Showing 1-5 of 5
Per page:1-5 of 5
Item Code | Hole A Fix Type | Body Diameter | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Maximum Panel Thickness B | Exposed End Diameter | Type | Hole Diameter B | Color | Hole Diameter A | Hardness | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBSPM-4 | Pull Mount Fix | 0.374 | 0.250 | Pull Mount Fix | 0.189 in | 0.190 | 0.094 in | - | Ends Break Away | 0.187 in | Black | 0.187 in | 45 Shore A | -40 °F | EPDM | 0.094 | 194 °F | |
CBSPM-10 | Pull Mount Fix | 0.374 | 0.625 in | Pull Mount Fix | 0.189 in | 0.190 | 0.094 in | - | Ends Break Away | 0.187 in | Black | 0.187 in | 45 Shore A | -40 °F | EPDM | 0.094 | 194 °F | |
CBSPM-8 | Pull Mount Fix | 0.374 | 0.500 in | Pull Mount Fix | 0.189 in | 0.190 | 0.094 in | - | Ends Break Away | 0.187 in | Black | 0.187 in | 45 Shore A | -40 °F | EPDM | 0.094 | 194 °F | |
CBSPM-12 | Pull Mount Fix | 0.374 | 0.750 in | Pull Mount Fix | 0.189 in | 0.190 | 0.094 in | - | Ends Break Away | 0.187 in | Black | 0.187 in | 45 Shore A | -40 °F | EPDM | 0.094 | 194 °F | |
CBSPM-6 | Pull Mount Fix | 0.374 | 0.375 in | Pull Mount Fix | 0.189 in | 0.190 | 0.094 in | - | Ends Break Away | 0.187 in | Black | 0.187 in | 45 Shore A | -40 °F | EPDM | 0.094 | 194 °F |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
CBSPM-4
Hole A Fix Type
Pull Mount Fix
Body Diameter
0.374
Spacer Length
0.250
Hole B Fix Type
Pull Mount Fix
CBSPM-10
Hole A Fix Type
Pull Mount Fix
Body Diameter
0.374
Spacer Length
0.625 in
Hole B Fix Type
Pull Mount Fix
CBSPM-8
Hole A Fix Type
Pull Mount Fix
Body Diameter
0.374
Spacer Length
0.500 in
Hole B Fix Type
Pull Mount Fix
CBSPM-12
Hole A Fix Type
Pull Mount Fix
Body Diameter
0.374
Spacer Length
0.750 in
Hole B Fix Type
Pull Mount Fix
Per page:
1–5 of 6
