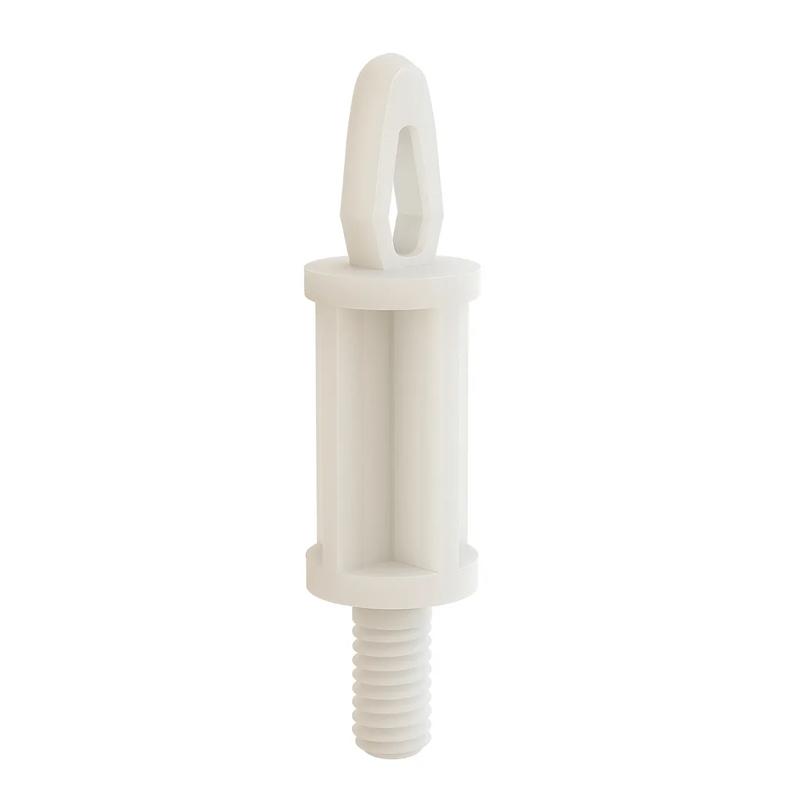

SRCBS-TM - Male Threaded Non-Locking PCB Support
Showing 1-10 of 22
Per page:1-10 of 22
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Body Diameter | Spacer Length | UL/CSA Description | Distance Across Flats | Head Height | Thread Length | Locking Head Height A | Male thread length | Type | Hole Diameter | Hole Diameter A | Minimum Operating Temperature | Thread Size | Material | Maximum Panel Thickness | Hole B Fix Type | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBS-TM-14-01 | UL94 V-2 | Snap Lock | Natural | 7.1 mm | 22.2 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | 7.6 mm | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 85 | - | |
CBS-TM-22-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 34.9 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | 7.6 mm | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - | |
CBS-TM-8-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 12.7 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | 7.6 mm | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - | |
CBS-TM-12-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 19.1 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | 7.6 mm | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - | |
CBS-TM-4-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 6.4 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | 7.6 mm | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - | |
CBS-TM-10-19 | UL94 V-0 | Non-Locking Fix | Natural | 0.280 in | 0.625 in | - | - | - | - | 0.400 in | - | - | - | 0.157 | -40 °F | #6-32 | Nylon 6/6 | - | Male Fix | 0.062 in | 230 °F | - | |
CBS-TM-22-01 | UL94 V-2 | Non-Locking Fix | Natural | 0.280 in | 1.375 in | - | - | - | - | 0.400 in | - | - | - | 0.157 | -40 °F | #6-32 | Nylon 6/6 | - | Male Fix | 0.062 in | 185 °F | - | |
CBS-TM-24-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 38.1 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | - | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - | |
CBS-TM-20-19 | UL94 V-0 | Snap Lock | Natural | 7.1 mm | 31.8 mm | UL E70062 | 7.1 mm | 10.2 mm | 7.6 mm | 10.2 mm | - | Female/Snap-lock Circuit Board Support | 4.0 mm | 4.0 mm | -40 | #6-32 | Nylon 6/6 | 1.6 mm | Male Thread Fix | 1.57 mm | 110 | - |
Per page:
1-10 of 22
1–5 of 22 variants
Per page:
CBS-TM-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
7.1 mm
CBS-TM-22-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
7.1 mm
CBS-TM-8-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
7.1 mm
CBS-TM-12-19
Material Flammability Standard
UL94 V-0
Hole A Fix Type
Snap Lock
Color
Natural
Body Diameter
7.1 mm
