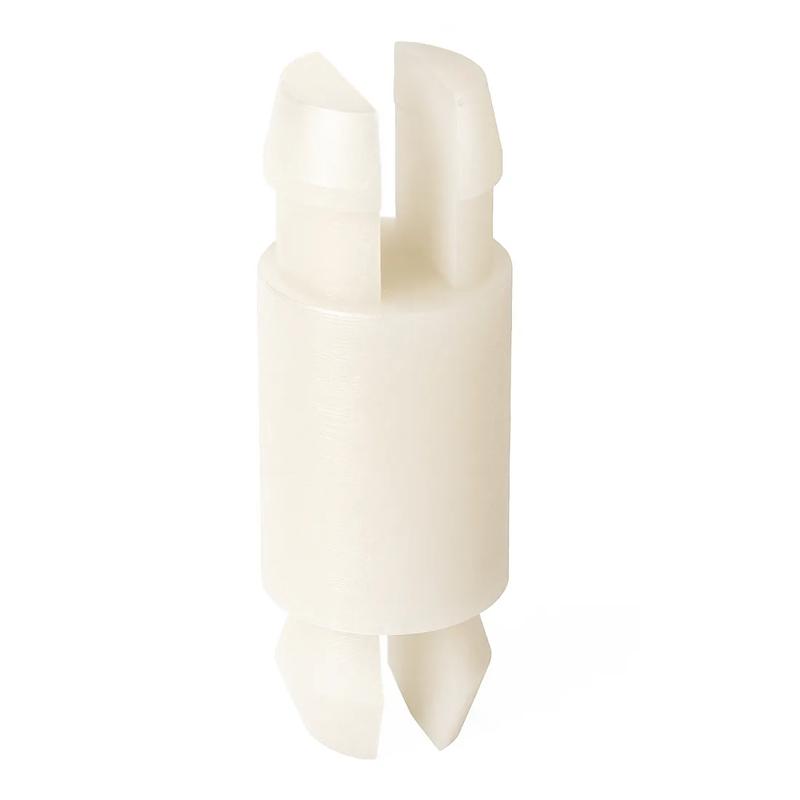

SRCBMSP2 - Removable Mini Support Post
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Exposed End Diameter | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBMSP215A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.177 in | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F | |
CBMSP220A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.197 | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F | |
CBMSP210A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.157 | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F | |
CBMSP230A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.276 | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F | |
CBMSP255A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.551 | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F | |
CBMSP245A | 0.047 in | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.413 | Locking Two Prong Snap-Lock | 0.140 | 0.140 in | - | Removable Mini Support Post | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 0.047 in | 0.062 in | 185 °F |
CBMSP215A
Minimum Panel Thickness A
0.047 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
CBMSP220A
Minimum Panel Thickness A
0.047 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
CBMSP210A
Minimum Panel Thickness A
0.047 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
CBMSP230A
Minimum Panel Thickness A
0.047 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
