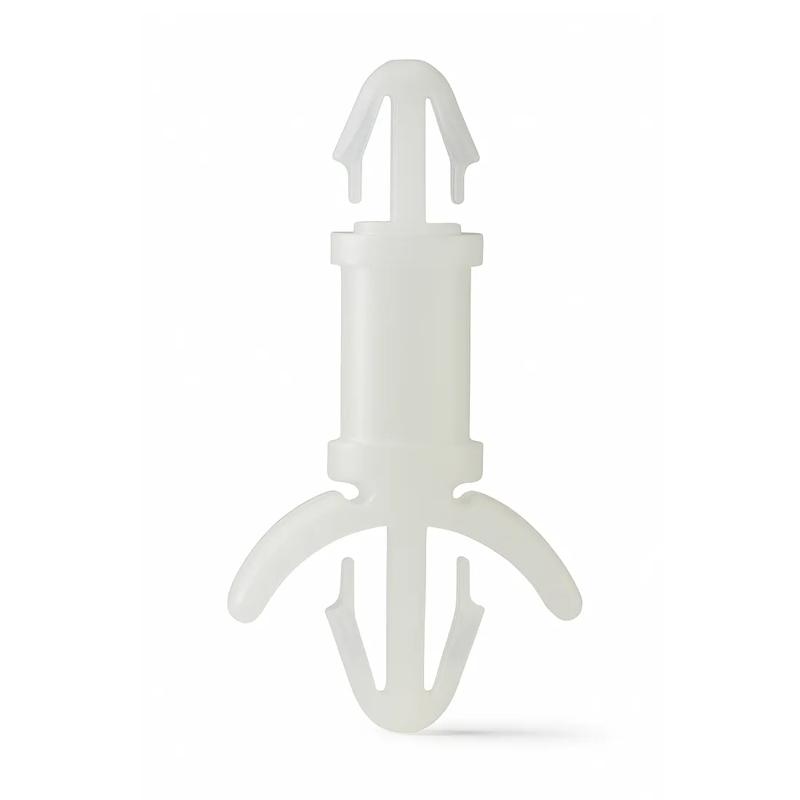

SRCBLS3 - Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBLS305A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 3.2 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS310A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 4.8 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS330A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 11.1 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS320A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 7.9 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS315A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 6.4 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS345A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 15.9 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS350A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 19.0 mm | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS325A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 9.5 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 | |
CBLS340A | 1.2 mm | UL94 V-2 | Locking Arrowhead Fix | 3.0 | 14.3 | Locking Arrowhead Fix | 3.2 | 2.8 | 3.0 | Natural | -40 | Nylon 6/6 | 2 | 1.7 | 1.2 mm | 1.7 | 185 |
CBLS305A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.0
CBLS310A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.0
CBLS330A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.0
CBLS320A
Minimum Panel Thickness A
1.2 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.0
