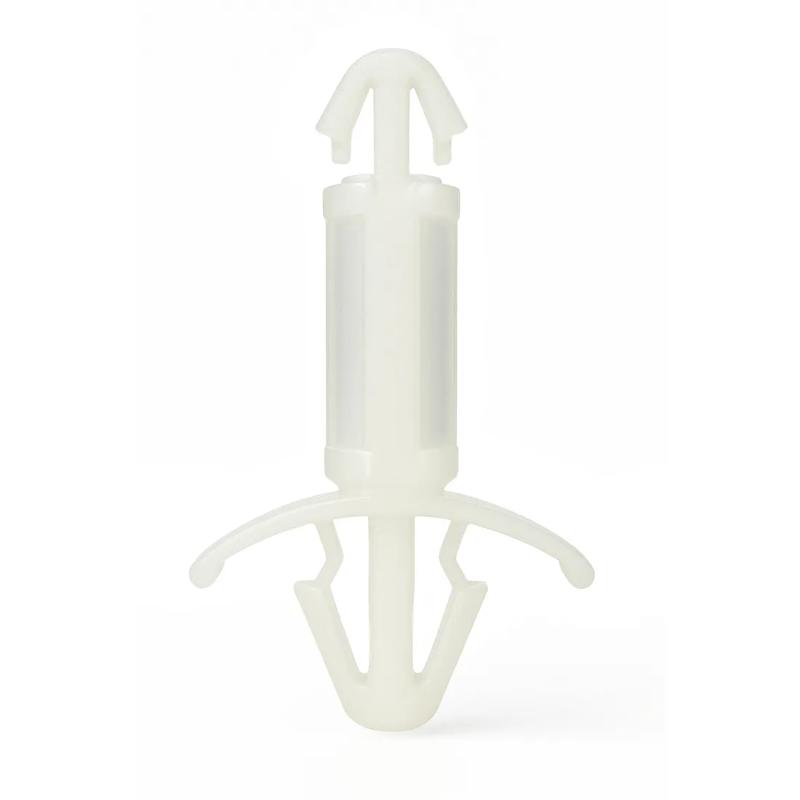

SRCBLS2 - Dual Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Hole Diameter B | Color | Minimum Operating Temperature | Material | Strap Width | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBLS215A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 6.3 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS250A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 25.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS220A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 8.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS210A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 4.8 | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS205A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 3.2 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS225A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 10.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS230A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 12.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS235A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 14.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS240A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 16.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.0 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 |
CBLS215A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS250A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS220A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS210A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
