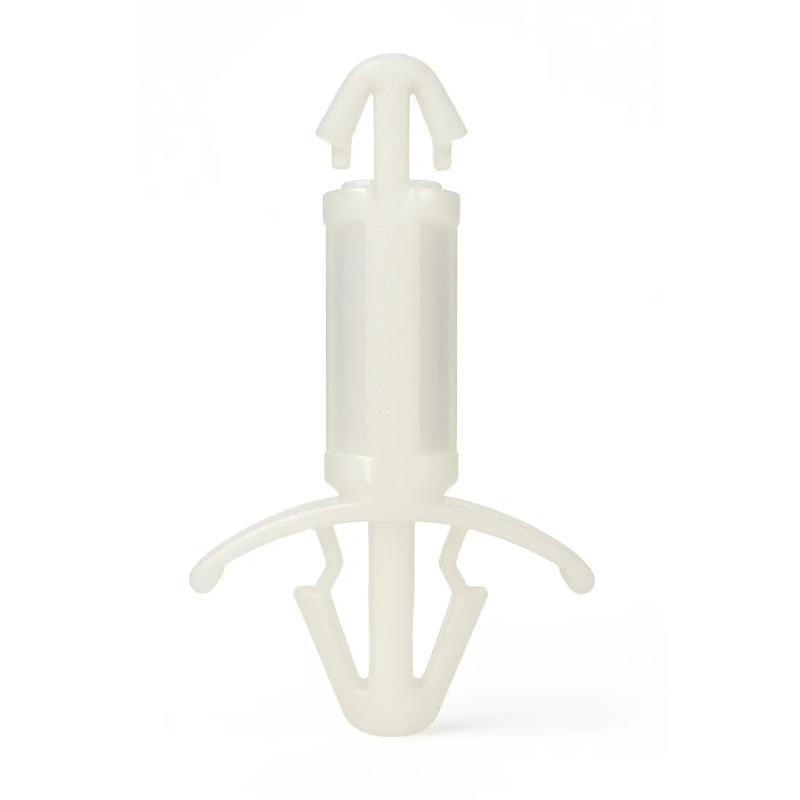

SRCBLS1 - Dual Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Hole Diameter B | Color | Minimum Operating Temperature | Material | Strap Width | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBLS110A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 5.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS130A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 12.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS135A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 14.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS105A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 3.2 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS140A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 16.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS125A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 10.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS115A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 6.3 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS150A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 25.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 | |
CBLS145A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.8 | 18.0 mm | Locking Arrowhead Fix | 2.8 | 4.8 | 3.5 | Natural | -40 | Nylon 6/6 | 14.0 mm | 2 | 1.7 | 1.2 mm | 2.2 | 185 |
CBLS110A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS130A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS135A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
CBLS105A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.8
