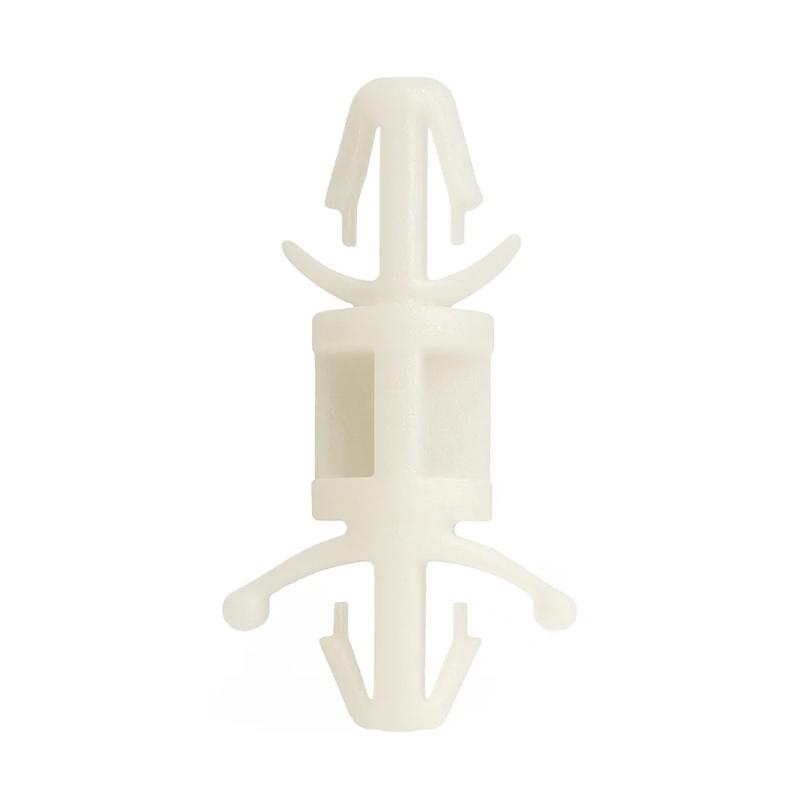

SRCBDLS6 - Dual Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBDLS615A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 4.8 | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS605A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 3.2 | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS650A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 14.0 mm | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS610A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 4.0 mm | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS660A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 18.0 mm | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS640A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 11.2 mm | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS665A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 19.1 | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS630A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 8.0 mm | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 | |
CBDLS620A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 3.5 | 6.4 | Locking Arrowhead Fix | 2.5 | 4.0 | 3.5 | Natural | -40 | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 1.6 | 185 |
CBDLS615A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.5
CBDLS605A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.5
CBDLS650A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.5
CBDLS610A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
3.5
