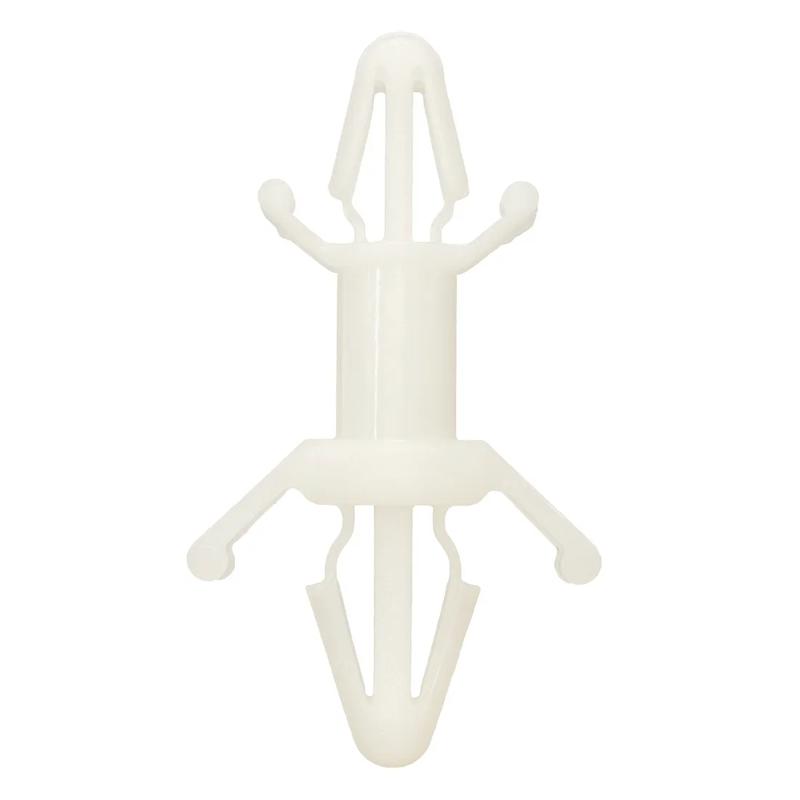

SRCBDLS2 - Dual Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Strap Width | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Style | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CBDLS235A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 7.1 mm | 4.0 | 19.1 mm | Locking Arrowhead Fix | 5.0 mm | 5.6 mm | 14.3 mm | - | 4.75 mm | Natural | -40 °F | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 2.0 mm | 185 °F | |
CBDLS215A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 7.1 mm | 4.0 | 7.9 | Locking Arrowhead Fix | 5.0 mm | 5.6 mm | 14.3 mm | - | 4.75 mm | Natural | -40 °F | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 2.0 mm | 185 °F | |
CBDLS250A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 7.1 mm | 4.0 | 28.6 mm | Locking Arrowhead Fix | 5.0 mm | 5.6 mm | 14.3 mm | - | 4.75 mm | Natural | -40 °F | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 2.0 mm | 185 °F | |
CBDLS245A | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 7.1 mm | 4.0 | 25.4 mm | Locking Arrowhead Fix | 5.0 mm | 5.6 mm | 14.3 mm | - | 4.75 mm | Natural | -40 °F | Nylon 6/6 | 1 | 2.0 | 0.8 mm | 2.0 mm | 185 °F |
CBDLS235A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
7.1 mm
CBDLS215A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
7.1 mm
CBDLS250A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
7.1 mm
CBDLS245A
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Body Diameter
7.1 mm
