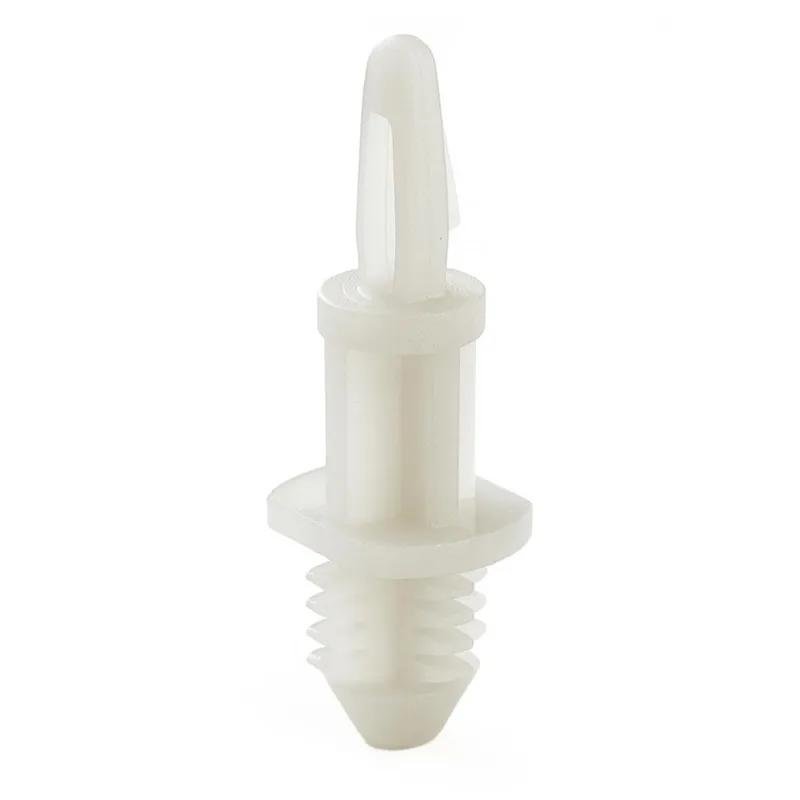

SRBHL - Fir-Tree Locking PCB Support
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Minimum Panel Thickness B | Flange Width | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BHL-12-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 19.1 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-14-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 22.2 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-3-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 4.8 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-10-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 15.9 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-4-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 6.4 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-6-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 9.5 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-8-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 12.7 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | |
BHL-7-01 | UL94 V-2 | Locking Bayonet Fix | 4.0 | 11.1 | UL E70062 | Fir Tree Fix | 8.7 | 10.2 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 1.6 | 85 |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
BHL-12-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0
Spacer Length
19.1
BHL-14-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0
Spacer Length
22.2
BHL-3-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0
Spacer Length
4.8
BHL-10-01
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0
Spacer Length
15.9
