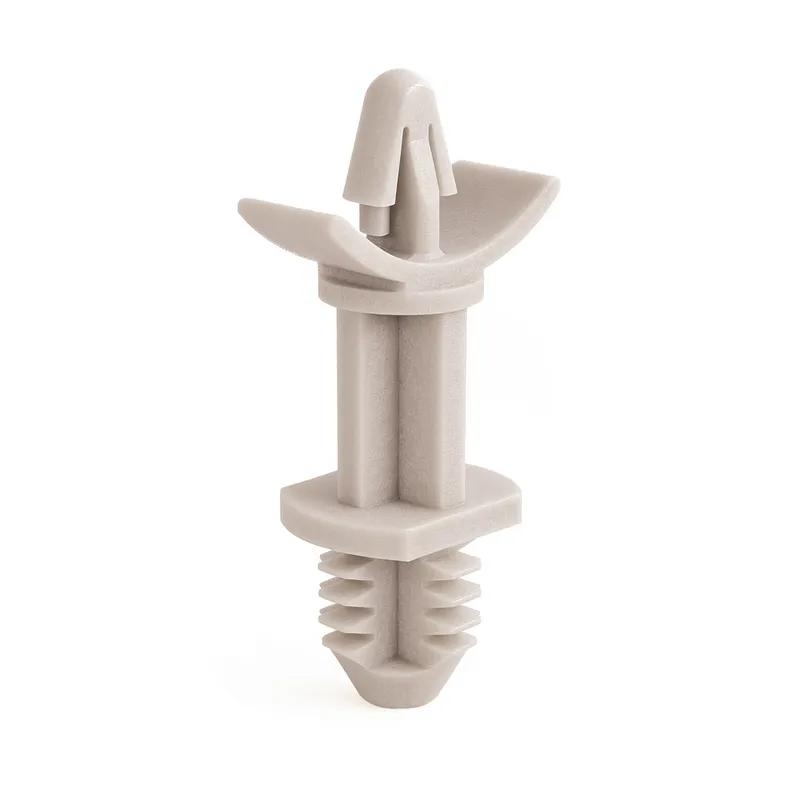

SRBHDL - Fir-Tree Locking PCB Support
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | UL/CSA Description | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Minimum Panel Thickness B | Flange Width | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BHDL-6-01 | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.0 | 9.5 | UL E70062 | Fir Tree Fix | 8.7 | 5.6 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 2.0 | 85 | - | |
BHDL-8-01 | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.0 | 12.7 | UL E70062 | Fir Tree Fix | 8.7 | 5.6 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 2.0 | 85 | - | |
BHDL-4-01 | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.0 | 6.4 | UL E70062 | Fir Tree Fix | 8.7 | 5.6 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 2.0 | 85 | - | |
BHDL-10-01 | 0.8 mm | UL94 V-2 | Locking Arrowhead Fix | 4.0 | 15.9 | UL E70062 | Fir Tree Fix | 8.7 | 5.6 | 6.4 mm | 11.1 mm | 7.9 | Natural | -40 | Nylon 6/6 | 2.0 | 85 | - | |
BHDL-12-01 | 0.031 in | UL94 V-2 | Locking Arrowhead Fix | 0.156 | 0.750 in | - | Fir Tree Fix | 0.344 | 0.219 in | 0.250 in | - | 0.312 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
BHDL-14-01 | 0.031 in | UL94 V-2 | Locking Arrowhead Fix | 0.156 | 0.875 in | - | Fir Tree Fix | 0.344 | 0.219 in | 0.250 in | - | 0.312 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - |
BHDL-6-01
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.0
BHDL-8-01
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.0
BHDL-4-01
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.0
BHDL-10-01
Minimum Panel Thickness A
0.8 mm
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
4.0
