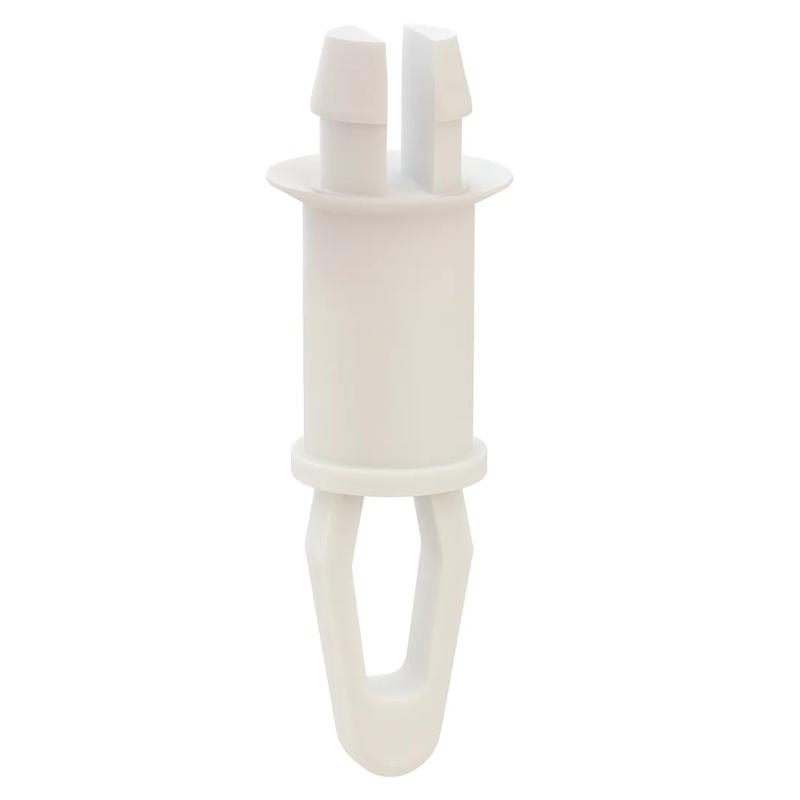

SR27TCSP - Non-Locking PCB Support
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Maximum Panel Thickness B | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27TCSP00125 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.125 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00375 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.375 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00437 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.437 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00875 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.875 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00750 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.750 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP01000 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 1.000 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00312 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.312 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00625 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.625 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | |
27TCSP00500 | UL94 V-2 | Non-Locking Bayonet Fix | 0.187 in | 0.156 in | 0.500 in | Locking Two Prong Fix | 0.062 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F |
27TCSP00125
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Bayonet Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27TCSP00375
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Bayonet Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27TCSP00437
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Bayonet Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27TCSP00875
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Bayonet Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
