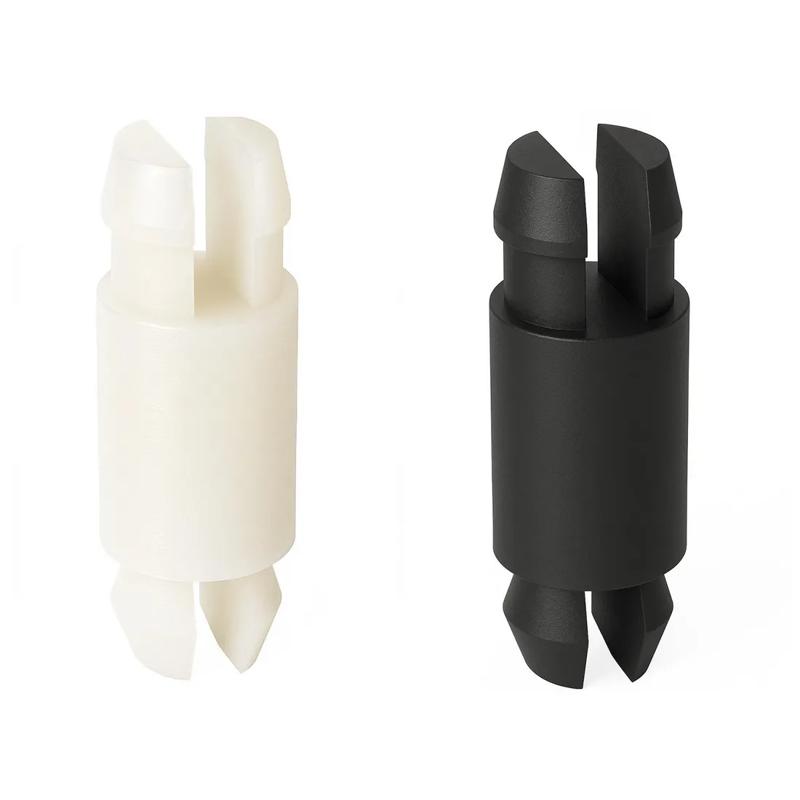

SR27MP - Removable Mini Support Post
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Maximum Panel Thickness B | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27MP00500 | UL94 V-2 | Non-Locking Two Prong Fix | 7.1 | 4.0 | 12.7 | Locking Two Prong Fix | 3.6 | 3.6 | 1.6 | Removable Mini Support Post | 4.0 | Natural | -40 | Nylon 6/6 | 1.6 | 85 | - | |
27MP00625B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.625 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00437SB | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.437 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00250B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.250 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00375B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.375 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00500B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.500 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °C | Nylon 6/6 | 0.062 in | 85 °C | - | |
27MP01000B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 1.000 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00437B | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 in | 0.156 in | 0.438 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 in | Black | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - | |
27MP00437S | UL94 V-2 | Non-Locking Two Prong Snap-Fit | 0.187 | 0.156 | 0.437 in | Locking Two Prong Snap-Lock | 0.140 in | 0.140 in | 0.062 in | Removable Mini Support Post | 0.156 | Natural | -40 °F | Nylon 6/6 | 0.062 in | 185 °F | - |
27MP00500
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Fix
Body Diameter
7.1
Hole Diameter A
4.0
27MP00625B
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27MP00437SB
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27MP00250B
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Non-Locking Two Prong Snap-Fit
Body Diameter
0.187 in
Hole Diameter A
0.156 in
