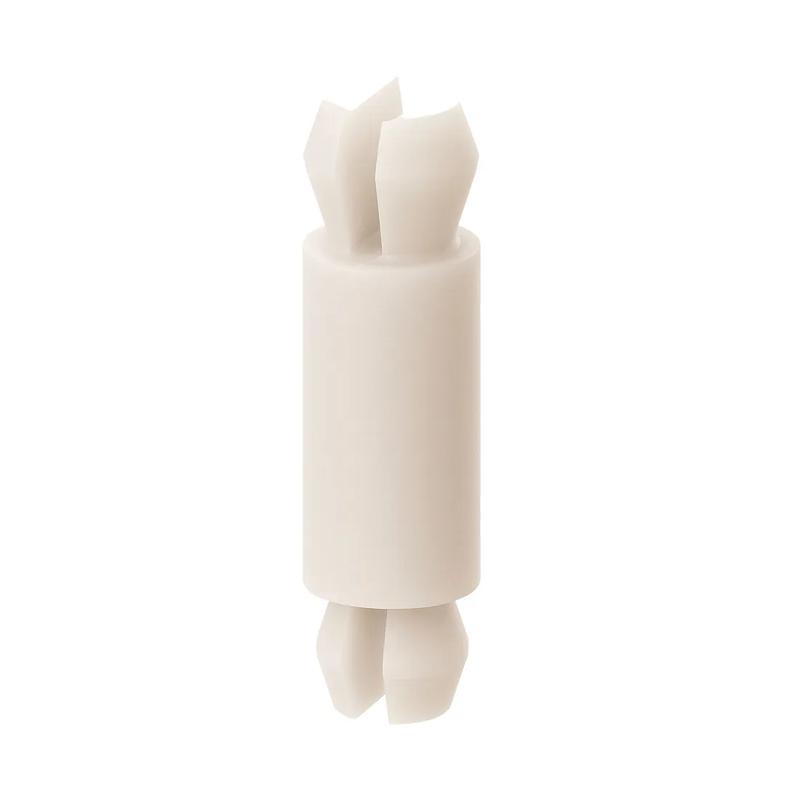

SR27MMP - Locking Mini Support Post
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Hole B Fix Type | Maximum Panel Thickness B | Hole Diameter B | Color | Minimum Operating Temperature | Material | Exposed End Diameter | Locking Head Height | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27MMP002 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 2.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP003 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 3.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP014 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 14.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP003A | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 3.5 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP005 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 5.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP012 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 12.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP010 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 10.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP016 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 16.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F | |
27MMP004 | UL94 V-2 | Locking Two Prong Snap-Lock | 4.6 mm | 2.5 mm | 4.0 mm | Locking Two Prong Snap-Lock | 1.6 mm | 2.5 mm | Natural | -40 °F | Nylon 6/6 | - | 3.6 mm | 1.6 mm | 185 °F |
27MMP002
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Snap-Lock
Body Diameter
4.6 mm
Hole Diameter A
2.5 mm
27MMP003
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Snap-Lock
Body Diameter
4.6 mm
Hole Diameter A
2.5 mm
27MMP014
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Snap-Lock
Body Diameter
4.6 mm
Hole Diameter A
2.5 mm
27MMP003A
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Snap-Lock
Body Diameter
4.6 mm
Hole Diameter A
2.5 mm
