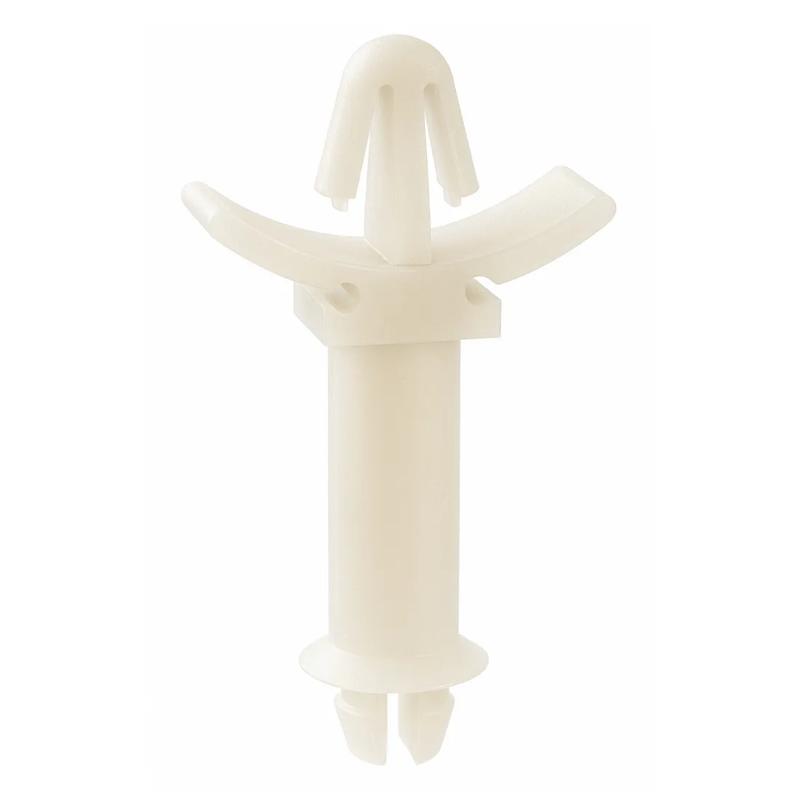

SR27LSP - Locking Support Post
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Maximum Panel Thickness B | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27LSP00250B | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.250 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Black | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00250 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.250 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00750 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.750 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00187 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.187 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00375 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.375 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00625 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.625 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP01125 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 1.125 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP01000 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 1.000 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - | |
27LSP00437 | 0.030 in | UL94 V-2 | Locking Arrowhead Fix | 0.187 in | 0.437 in | Locking Two Prong Fix | 0.062 in | 0.157 in | Natural | -40 °F | Nylon 6/6 | 0.078 in | 185 °F | - |
27LSP00250B
Minimum Panel Thickness A
0.030 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
0.187 in
27LSP00250
Minimum Panel Thickness A
0.030 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
0.187 in
27LSP00750
Minimum Panel Thickness A
0.030 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
0.187 in
27LSP00187
Minimum Panel Thickness A
0.030 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Arrowhead Fix
Hole Diameter A
0.187 in
