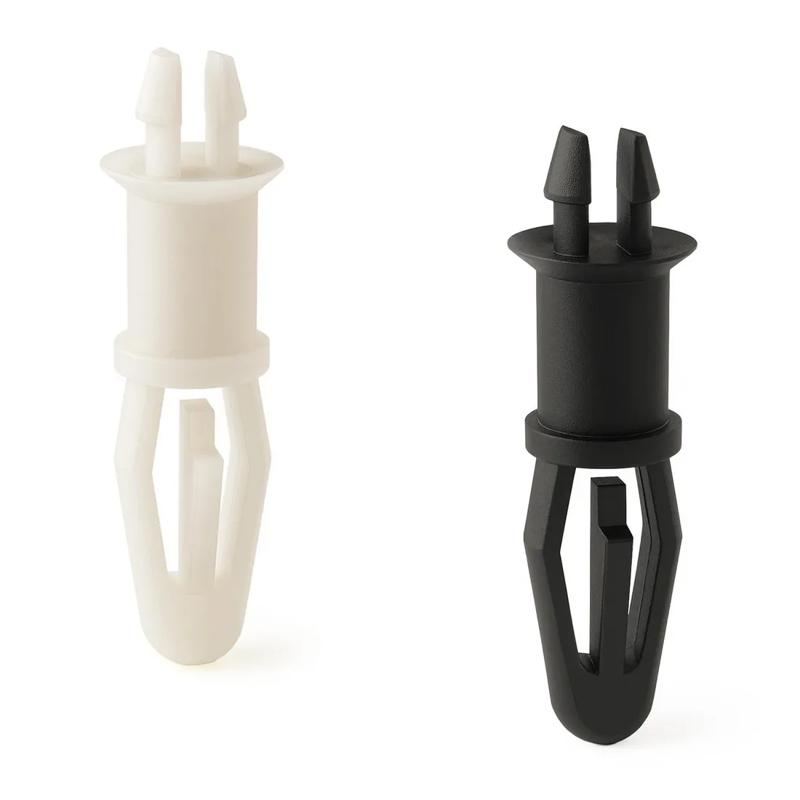

SR27LMSP - PCB Support
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Locking Head Height A | Maximum Panel Thickness B | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Flange Diameter | Hole B Fix Type | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27LMSP00125 | UL94 V-2 | Locking Bayonet Nose Fix | 5.5 mm | 4.0 mm | 3.2 mm | 10.2 mm | 1.6 mm | PCB Support | 3.2 mm | Natural | -40 | Nylon 6/6 | 3.9 mm | Locking Two Prong Fix | 1.6 mm | 85 | - | |
27LMSP00437B | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 in | 0.437 in | - | 0.062 in | - | 0.125 in | Black | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00437 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 in | 0.437 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00625 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 | 0.625 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP01000 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 | 1.000 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00375 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 in | 0.375 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00312 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 in | 0.312 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00250 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 in | 0.250 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - | |
27LMSP00875 | UL94 V-2 | Locking Bayonet Nose Fix | 0.154 in | 0.156 | 0.875 in | - | 0.062 in | - | 0.125 in | Natural | -40 °F | Nylon 6/6 | - | Locking Two Prong Fix | 0.062 in | 185 °F | - |
27LMSP00125
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
5.5 mm
Hole Diameter A
4.0 mm
27LMSP00437B
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.154 in
Hole Diameter A
0.156 in
27LMSP00437
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.154 in
Hole Diameter A
0.156 in
27LMSP00625
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.154 in
Hole Diameter A
0.156
