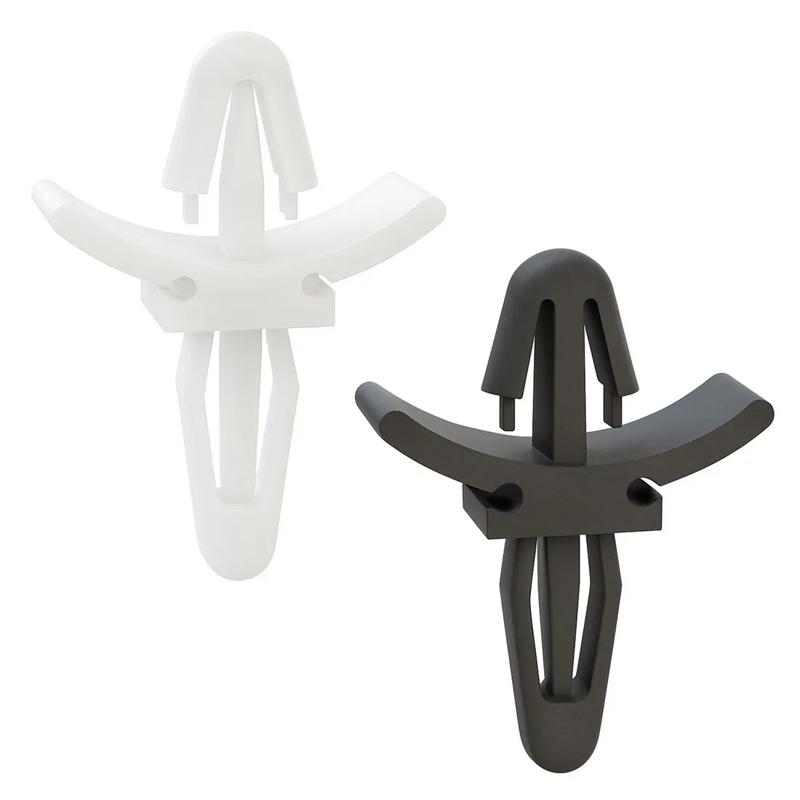

SR27LLP - Locking PCB Support
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Minimum Panel Thickness A | Material Flammability Standard | Hole A Fix Type | Hole Diameter A | Spacer Length | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Strap Width | Hole Diameter B | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness B | Minimum Panel Thickness B | Maximum Panel Thickness A | Maximum Operating Temperature | Exposed End Diameter | Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27LLP0125B | 0.078 in | UL94 V-2 | Locking Bayonet Fix | 4.0 mm | 3.2 mm | Locking Arrowhead Fix | 5.6 mm | 10.2 mm | 14.3 mm | 4.8 mm | Black | -40 °F | Nylon 6/6 | 1.98 mm | 0.79 mm | 1.57 mm | 185 °F | - | - | |
27LLP0125 | 0.078 in | UL94 V-2 | Locking Bayonet Fix | 4.0 | 3.2 | Locking Arrowhead Fix | 5.6 | 10.2 mm | 14.3 mm | 4.8 mm | Natural | -40 °C | Nylon 6/6 | 1.98 mm | 0.79 mm | 1.57 mm | 85 °C | - | 1 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
27LLP0125B
Minimum Panel Thickness A
0.078 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0 mm
27LLP0125
Minimum Panel Thickness A
0.078 in
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Fix
Hole Diameter A
4.0
