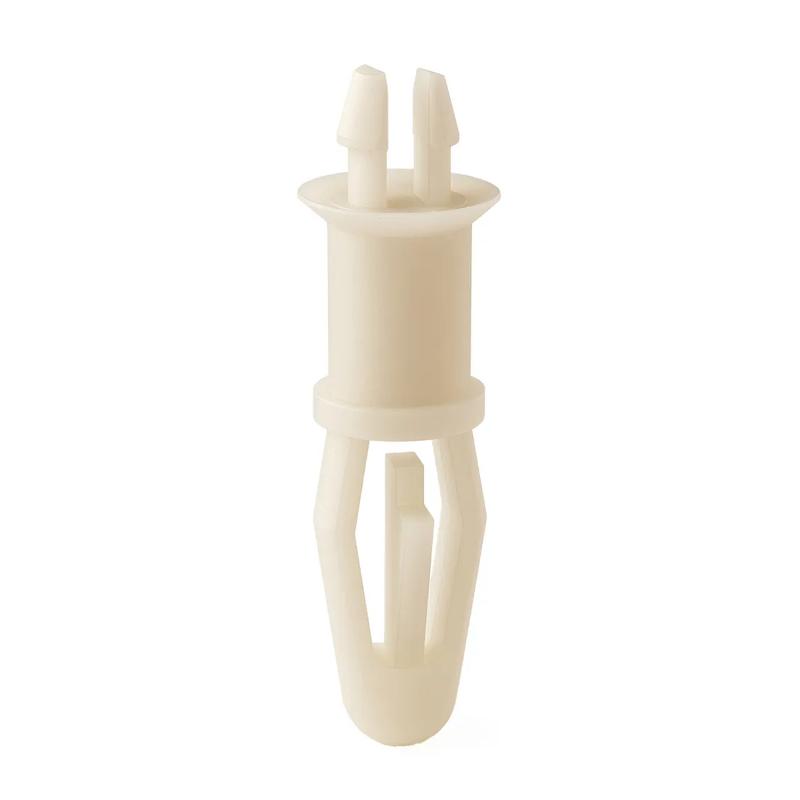

SR27LCSP - Locking PCB Support
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Locking Head Height A | Exposed End Diameter | Hole Diameter B | Color | Minimum Operating Temperature | Material | Flange Diameter | Hole B Fix Type | Maximum Panel Thickness B | Flange Thickness | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27LCSP00375 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.375 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00750 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.750 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00500 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.500 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00625 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.625 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00312 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.312 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00250 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.250 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP01000 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 1.000 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00125 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.125 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F | |
27LCSP00437 | UL94 V-2 | Locking Bayonet Nose Fix | 0.187 in | 0.156 in | 0.438 in | 0.400 in | - | 0.156 in | Natural | -40 °F | Nylon 6/6 | 0.281 in | Locking Two Prong Fix | 0.062 in | 0.030 in | 0.062 in | 185 °F |
27LCSP00375
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27LCSP00750
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27LCSP00500
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
27LCSP00625
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Bayonet Nose Fix
Body Diameter
0.187 in
Hole Diameter A
0.156 in
