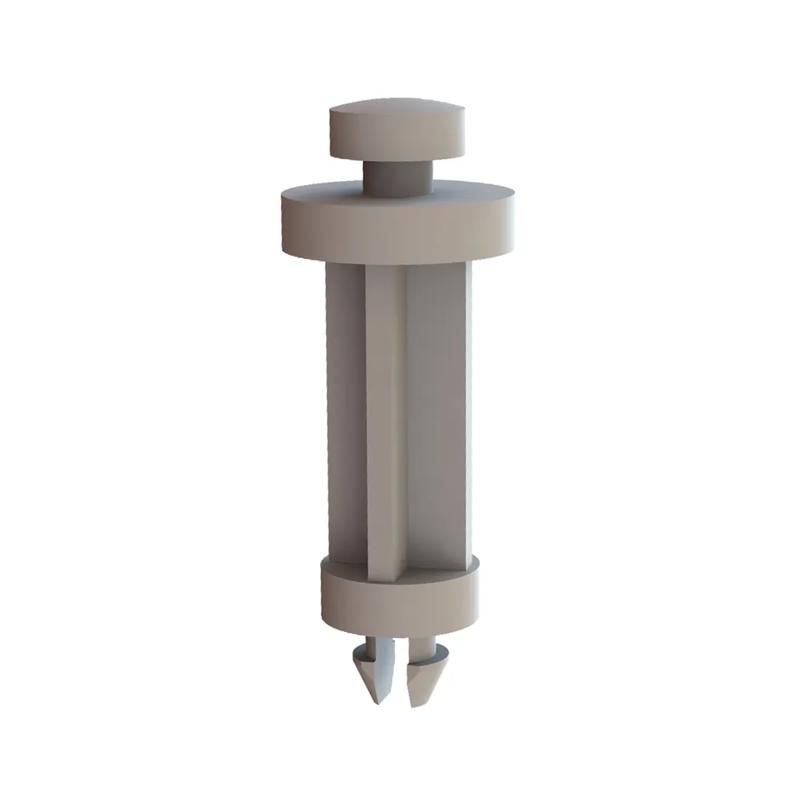

SR27KYP - Key Slot Locking Support Post
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Hole A Fix Type | Color | Maximum Mounting Hole Size | Body Diameter | Hole Diameter A | Hole B Fix Type | Locking Head Height B | Locking Head Height A | Exposed End Diameter | Minimum Operating Temperature | Material | Minimum Mounting Hole Size | Spacer Length | Maximum Panel Thickness B | Hole Spacing (Center to Center) | Maximum Panel Thickness A | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27KYP00750 | UL94 V-2 | Locking Two Prong Fix | Natural | 3.3 mm, 6.4 mm | 10.2 mm | 0.157 | Key Hole Connector | 0.100 | 0.156 in | - | -40 °F | Nylon 6/6 | 3.2 mm, 6.1 mm | 0.750 in | 0.062 in | 4.3 mm | 0.062 in | 185 °F | |
27KYP01000 | UL94 V-2 | Locking Two Prong Fix | Natural | 3.3 mm, 6.4 mm | 10.2 mm | 0.157 | Key Hole Connector | 0.100 | 0.156 in | - | -40 °F | Nylon 6/6 | 3.2 mm, 6.1 mm | 1.000 in | 0.062 in | 4.3 mm | 0.062 in | 185 °F | |
27KYP00875 | UL94 V-2 | Locking Two Prong Fix | Natural | 3.3 mm, 6.4 mm | 10.2 mm | 0.157 | Key Hole Connector | 0.100 | 0.156 in | - | -40 °F | Nylon 6/6 | 3.2 mm, 6.1 mm | 0.875 in | 0.062 in | 4.3 mm | 0.062 in | 185 °F |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
27KYP00750
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Maximum Mounting Hole Size
3.3 mm, 6.4 mm
27KYP01000
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Maximum Mounting Hole Size
3.3 mm, 6.4 mm
27KYP00875
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Color
Natural
Maximum Mounting Hole Size
3.3 mm, 6.4 mm
