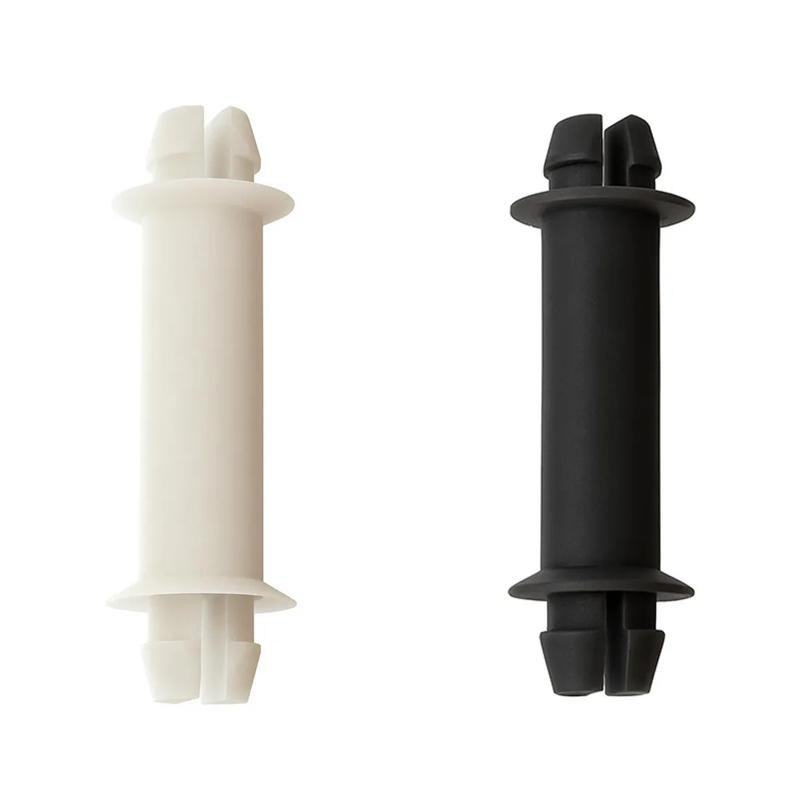

SR27DMSP - Locking Cupped Mini Support Post
Item Code | Material Flammability Standard | Hole A Fix Type | Body Diameter | Hole Diameter A | Spacer Length | Locking Head Height B | Type | Hole Diameter B | Color | Minimum Operating Temperature | Material | Flange Diameter | Hole B Fix Type | Maximum Panel Thickness B | Flange Thickness | Maximum Panel Thickness A | Maximum Operating Temperature | Mounting Method | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27DMSP00125 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 3.2 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00250 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 6.4 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00375 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 9.5 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00500 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 12.7 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00312 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 7.9 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00720 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 18.3 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00820 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 20.8 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00625 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 15.9 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - | |
27DMSP00950 | UL94 V-2 | Locking Two Prong Fix | 3.9 mm | 3.2 mm | 24.1 mm | 3.6 mm | Locking Cupped Mini Support Post | 3.2 mm | Natural | -40 | Nylon 6/6 | 5.8 mm | Locking Two Prong Fix | 1.6 mm | 0.8 mm | 1.6 mm | 85 | - |
27DMSP00125
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Body Diameter
3.9 mm
Hole Diameter A
3.2 mm
27DMSP00250
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Body Diameter
3.9 mm
Hole Diameter A
3.2 mm
27DMSP00375
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Body Diameter
3.9 mm
Hole Diameter A
3.2 mm
27DMSP00500
Material Flammability Standard
UL94 V-2
Hole A Fix Type
Locking Two Prong Fix
Body Diameter
3.9 mm
Hole Diameter A
3.2 mm
