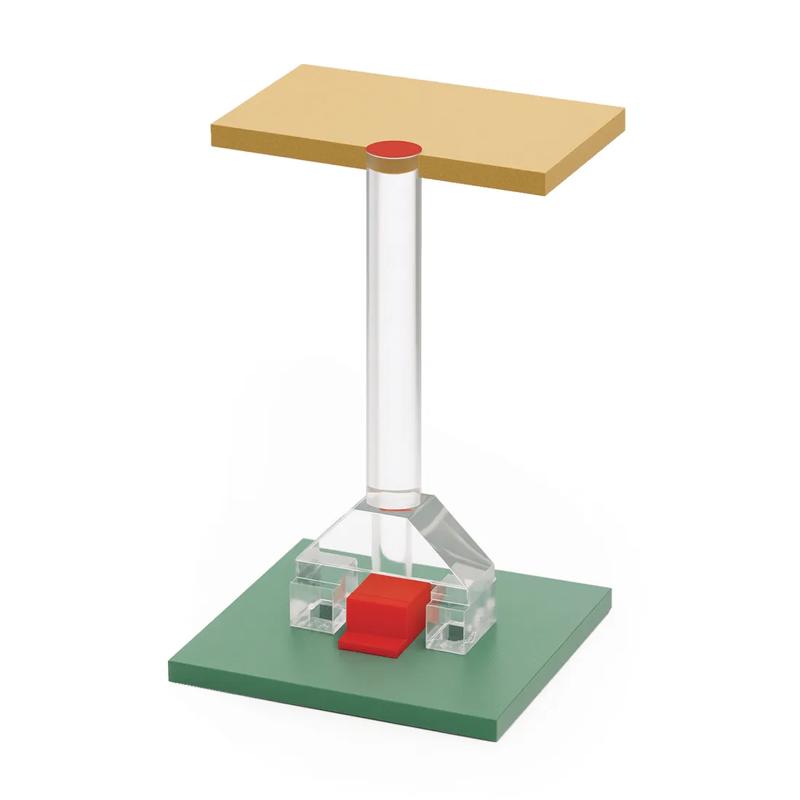

SRVLP - Vertical Light Pipe
Showing 1-10 of 19
Per page:1-10 of 19

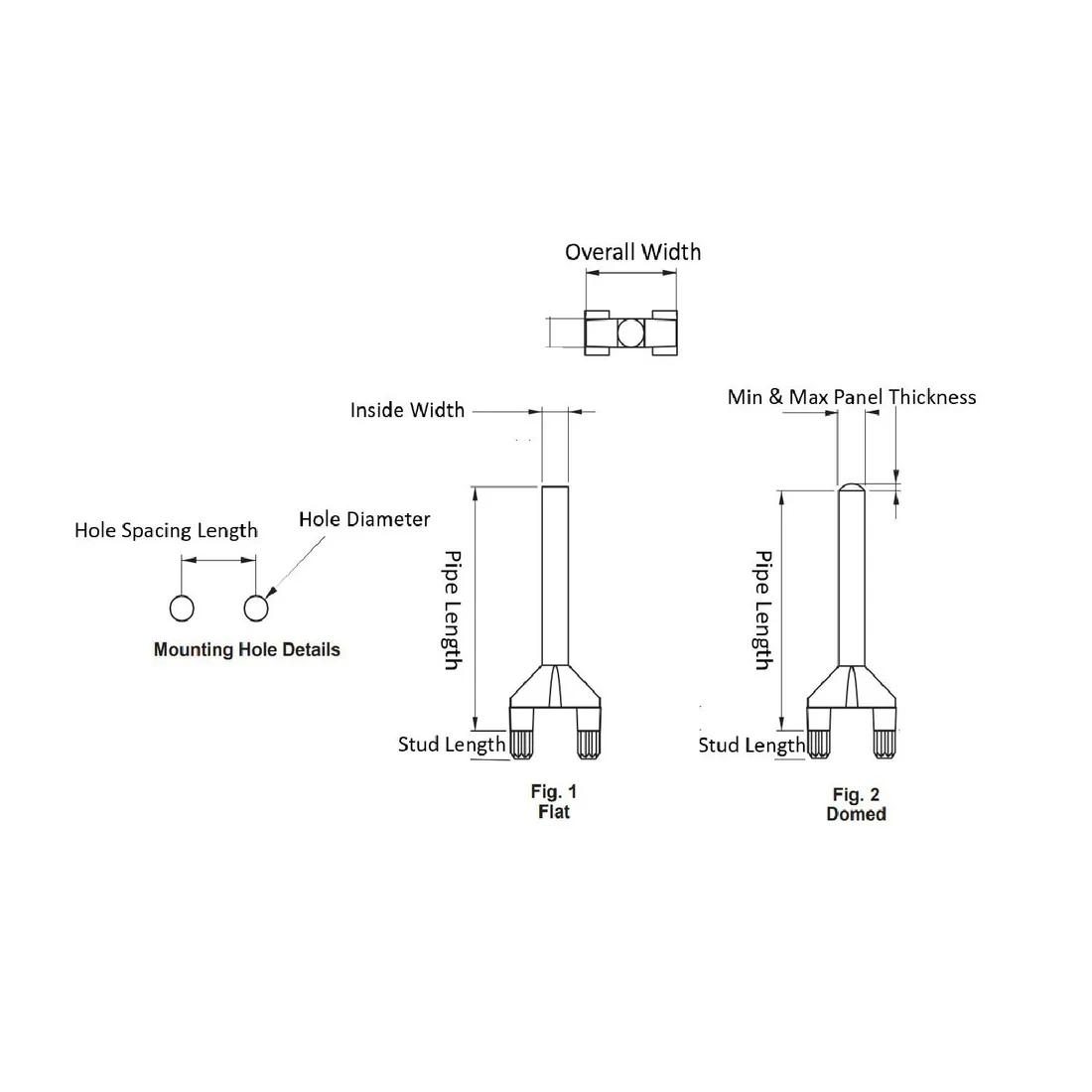

Item Code | Stud Length | Color | Hole Diameter | Overall Width | UL/CSA Description | Hole Spacing Length | Maximum Panel Thickness | Pipe Length | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Head Shape | Minimum Panel Thickness | Type | Pipe Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VLP1-D-1 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 12.7 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Dome | 0.8 | Vertical | 3.0 mm | |
VLP1-F-3 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 16.5 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Flat | 0.8 | Vertical | 3.0 mm | |
VLP1-F-1 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 12.7 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Flat | 0.8 | Vertical | 3.0 mm | |
VLP2-D-3 | 3.0 mm | Transparent | 2.4 | 10.0 | UL E121562 | 7.5 mm | 3.0 mm | 16.5 mm | 130 | 5.0 mm | UL94 V-0 | -40 | PC | Dome | 0.8 | Vertical | 3.0 mm | |
VLP1-D-3 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 16.5 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Dome | 0.8 | Vertical | 3.0 mm | |
VLP1-D-4 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 21.8 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Dome | 0.8 | Vertical | 3.0 mm | |
VLP1-F-5 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 26.1 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Flat | 0.8 | Vertical | 3.0 mm | |
VLP2-F-1 | 3.0 mm | Transparent | 2.4 | 10.0 | UL E121562 | 7.5 mm | 3.0 mm | 12.7 mm | 130 | 5.0 mm | UL94 V-0 | -40 | PC | Flat | 0.8 | Vertical | 3.0 mm | |
VLP1-F-4 | 2.5 mm | Transparent | 1.5 | 6.4 | UL E121562 | 4.7 mm | 3.0 mm | 21.8 mm | 130 | 3.0 mm | UL94 V-0 | -40 | PC | Flat | 0.8 | Vertical | 3.0 mm |
Per page:
1-10 of 19
1–5 of 19 variants
Per page:
VLP1-D-1
Stud Length
2.5 mm
Color
Transparent
Hole Diameter
1.5
Overall Width
6.4
VLP1-F-3
Stud Length
2.5 mm
Color
Transparent
Hole Diameter
1.5
Overall Width
6.4
VLP1-F-1
Stud Length
2.5 mm
Color
Transparent
Hole Diameter
1.5
Overall Width
6.4
VLP2-D-3
Stud Length
3.0 mm
Color
Transparent
Hole Diameter
2.4
Overall Width
10.0
Per page:
1–5 of 20
