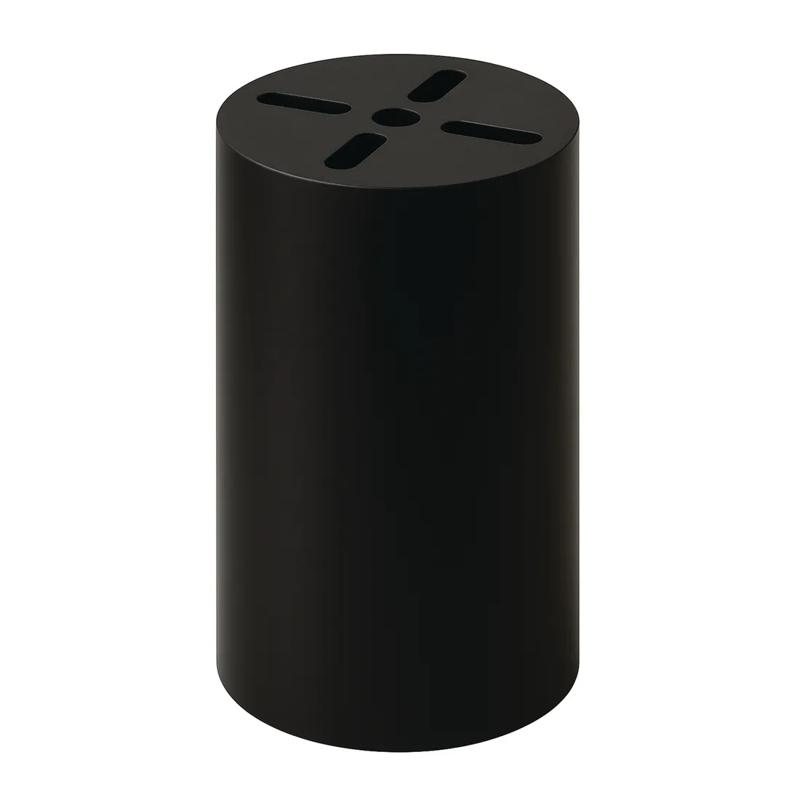

SRLEDM-3 - Metric LED Spacer
Showing 1-9 of 9
Per page:1-9 of 9
Item Code | Material Flammability Standard | Color | Inside Diameter | Distance Between Slots | Mounting Hole Width | Overall Height | Mounting Hole Length | Minimum Operating Temperature | Material | Overall Diameter | Shape | Maximum Operating Temperature | Slot Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEDM-3-09 | UL94 V-0 | Black | 0.032 in | 5.5 mm | 0.75 mm | 9.0 mm | 1.76 mm | 0 °C | PVC | 6.5 mm | Round | 50 °C | - | - | |
LEDM-3-21 | UL94 V-0 | Black | 0.032 in | 5.5 mm | 0.75 mm | 21.0 mm | 1.76 mm | 0 °C | PVC | 6.5 mm | Round | 50 °C | - | - | |
LEDM-3-03 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 3.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-02 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 2.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-04 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 4.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-10 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 10.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-06 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 6.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-13 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 13.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature | |
LEDM-3-08 | UL94 V-0 | Black | - | 5.5 mm | 0.75 mm | 8.0 | 1.76 mm | 0 | PVC | 6.5 | Round | 50 | 0.70 mm | High Temperature |
Per page:
1-9 of 9
1–5 of 9 variants
Per page:
LEDM-3-09
Material Flammability Standard
UL94 V-0
Color
Black
Inside Diameter
0.032 in
Distance Between Slots
5.5 mm
LEDM-3-21
Material Flammability Standard
UL94 V-0
Color
Black
Inside Diameter
0.032 in
Distance Between Slots
5.5 mm
LEDM-3-03
Material Flammability Standard
UL94 V-0
Color
Black
Slot Width
0.70 mm
Distance Between Slots
5.5 mm
LEDM-3-02
Material Flammability Standard
UL94 V-0
Color
Black
Slot Width
0.70 mm
Distance Between Slots
5.5 mm
Per page:
1–5 of 10
