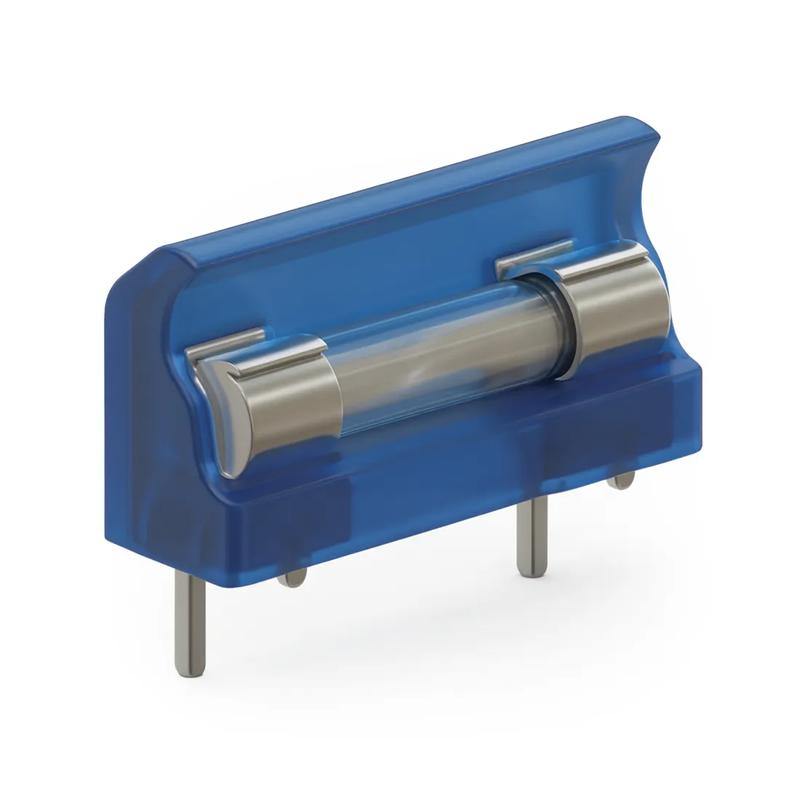

SRSK840 - Quick Fit Fuse Cover
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Base Plate Width | Color | Inside Height | UL/CSA Description | Inside Depth | Overall Height | Inside Width | Material Flammability Standard | Minimum Operating Temperature | Material | Base Plate Thickness | Maximum Operating Temperature | Fuse Type | Compatible Fuse Length | Compatible Fuse Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
840620 | - | Transparent Blue | 9.9 | UL E137220 | 6.1 mm | 12.7 | 20.1 | UL94 V-0 | -35 | PVC | - | 50 | Métrico | - | - | |
840730 | - | Transparent Blue | 9.9 | UL E137220 | 7.1 mm | 12.7 | 30.0 | UL94 V-0 | -35 | PVC | - | 50 | Métrico | - | - | |
840832 | - | Transparent Blue | 14.7 | UL E137220 | 8.1 mm | 15.9 | 32.0 | UL94 V-0 | -35 | PVC | - | 50 | Métrico | - | - | |
840836 | - | Transparent Blue | 9.9 | UL E137220 | 8.1 mm | 12.7 | 36.1 | UL94 V-0 | -35 | PVC | - | 50 | STD 0.250 x 1.250 in | 1.250 in | 0.205 in |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
840620
Base Plate Width
{"es-MX":"","en-US":"","pt-BR":""}
Color
Transparent Blue
Inside Height
9.9
UL/CSA Description
UL E137220
840730
Base Plate Width
{"es-MX":"","en-US":"","pt-BR":""}
Color
Transparent Blue
Inside Height
9.9
UL/CSA Description
UL E137220
840832
Base Plate Width
{"es-MX":"","en-US":"","pt-BR":""}
Color
Transparent Blue
Inside Height
14.7
UL/CSA Description
UL E137220
840836
Color
Transparent Blue
Inside Height
9.9
UL/CSA Description
UL E137220
Inside Depth
8.1 mm
