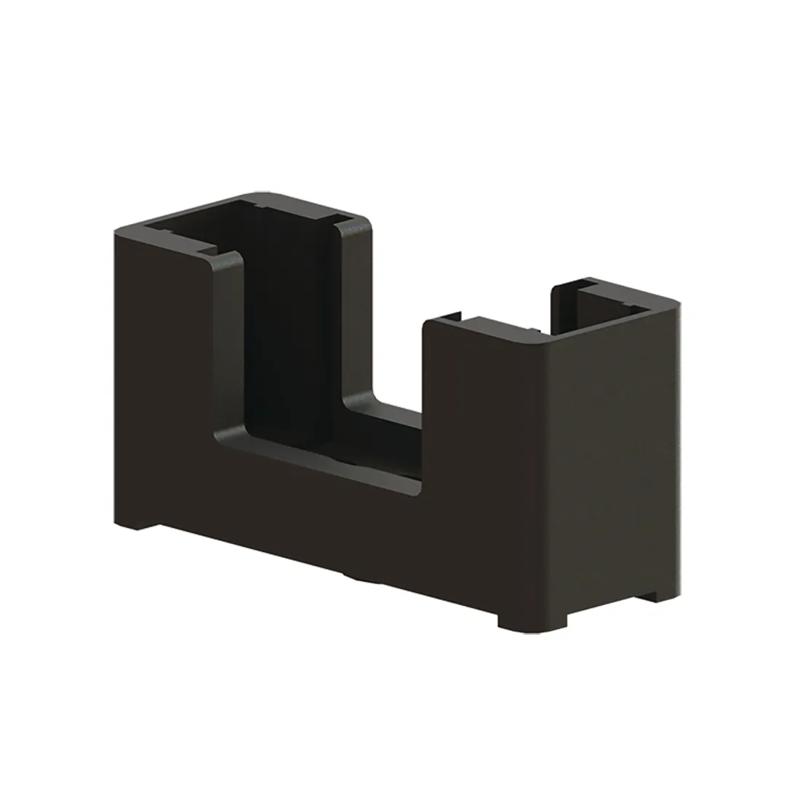

SRFH - Fuse Holder & Cover
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Material Flammability Standard | Color | Overall Width | Mounting Hole Diameter | Thickness | Compatible Fuse Length | Compatible Fuse Diameter | Base Plate Width | Minimum Operating Temperature | Material | Base Plate Thickness | Overall Height | Mounting Width | Overall Leg Length (Seed) | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FH-320-NV | UL94 V-0 | Black | 24.2 | 3.1 mm | 1.2 mm | 20.0 mm | 5.0 mm | - | -40 | Glass-Filled Nylon 6/6;Brass | - | 12.0 | 22.5 mm | 4.5 mm | 130 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FH-320-NV
Material Flammability Standard
UL94 V-0
Color
Black
Overall Width
24.2
Mounting Hole Diameter
3.1 mm
