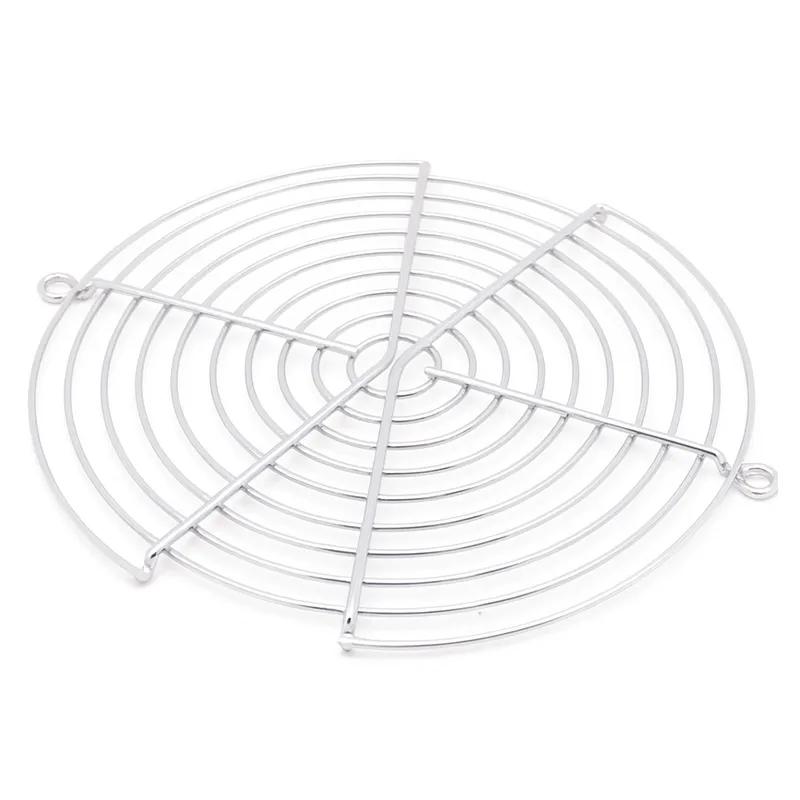

SRRCOFM - Fan Guards
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Mounting Method | Hole Diameter | Distance Between Fixing Holes | Fan Size | Coating | Shape | Material | Overall Diameter | Overall Thickness | Rib Diameter | Ring Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
RCOFM-80 | Screw | 5.2 | 71.5 | 80.0 mm | Nickel Chrome Plated | Circle | Steel | 76.2 | 4.9 | 1.8 mm | 1.8 mm | |
RCOFM-120 | Screw | 4.6 | 104.8 | 120.0 mm | Nickel Chrome Plated | Circle | Steel | 115.6 | 5.5 | 1.8 mm | 1.8 mm | |
RCOFM-150-A | Screw | 4.8 | 162.1 | 150.0 mm | Nickel Chrome Plated | Circle | Steel | 154.4 | 6.5 | 2.3 mm | 1.8 mm | |
RCOFM-25 | Screw | 3.2 | 28.2 | 25.0 mm | Nickel Chrome Plated | Circle | Steel | 24.0 | 2.2 | 1.4 mm | 1.4 mm | |
RCOFM-50 | Screw | 4.6 | 41.1 | 50.0 mm | Nickel Chrome Plated | Circle | Steel | 42.0 | 4.8 | 1.6 mm | 1.6 mm | |
RCOFM-40 | Screw | 4.0 | 32.0 | 40.0 mm | Nickel Chrome Plated | Circle | Steel | 29.1 | 4.8 | 1.6 mm | 1.6 mm | |
RCOFM-60 | Screw | 4.6 | 50.0 | 60.0 mm | Nickel Chrome Plated | Circle | Steel | 53.2 | 4.4 | 1.6 mm | 1.6 mm | |
RCOFM-92 | Screw | 4.6 | 82.5 | 92.0 mm | Nickel Chrome Plated | Circle | Steel | 90.0 | 5.5 | 1.8 mm | 1.6 mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
RCOFM-80
Mounting Method
Screw
Hole Diameter
5.2
Distance Between Fixing Holes
71.5
Fan Size
80.0 mm
RCOFM-120
Mounting Method
Screw
Hole Diameter
4.6
Distance Between Fixing Holes
104.8
Fan Size
120.0 mm
RCOFM-150-A
Mounting Method
Screw
Hole Diameter
4.8
Distance Between Fixing Holes
162.1
Fan Size
150.0 mm
RCOFM-25
Mounting Method
Screw
Hole Diameter
3.2
Distance Between Fixing Holes
28.2
Fan Size
25.0 mm
Per page:
1–5 of 9
