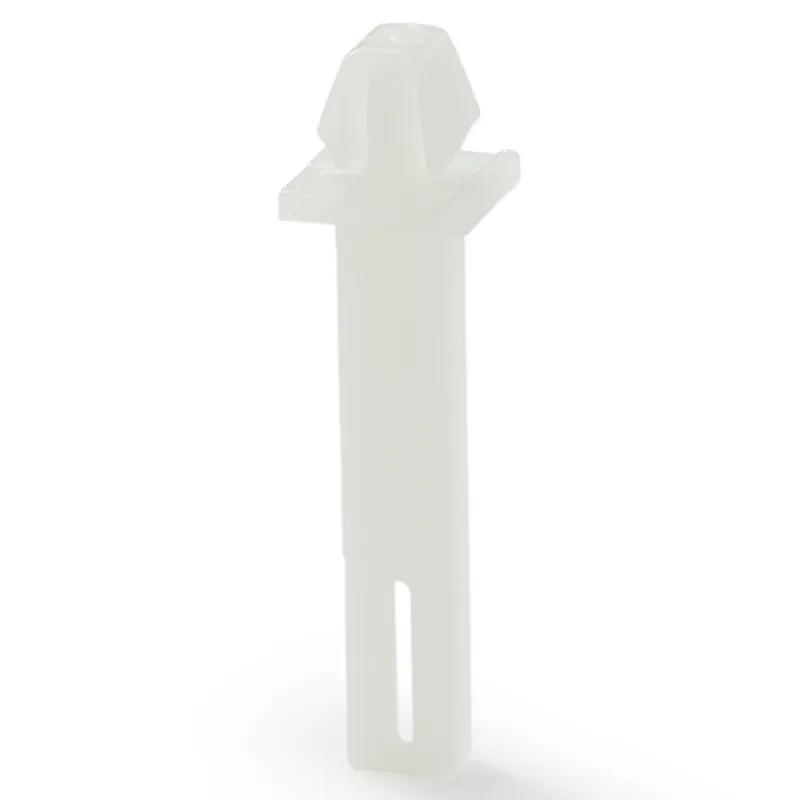

SRVMCGE - Vertical Mount Card Guide
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Color | UL/CSA Description | Mounting Hole Width | Height | Maximum Operating Temperature | Mounting Hole Length | Accepts Panel Thickness | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
VMCGE-30M-01 | Natural | UL E7006 | 5.5 mm | 36.6 mm | 85 | 7.1 mm | 1.6 mm | UL94 V-2 | Snap In | -40 | Nylon |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
VMCGE-30M-01
Color
Natural
UL/CSA Description
UL E7006
Mounting Hole Width
5.5 mm
Height
36.6 mm
