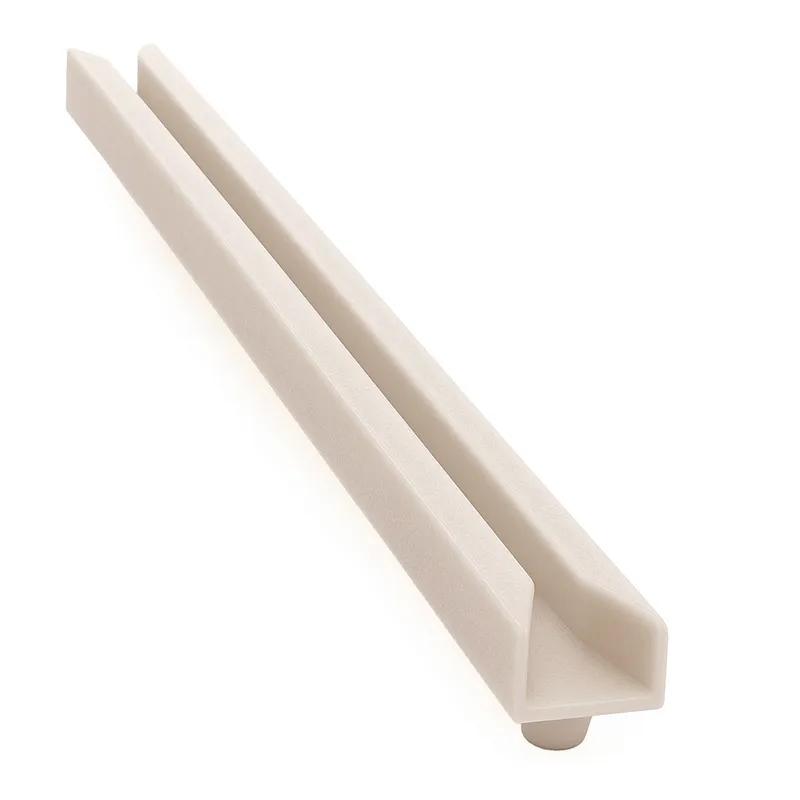

SRRSDC - Snap-in Card Guide
Showing 1-10 of 12
Per page:1-10 of 12
Item Code | Color | Channel Height | Maximum Panel Thickness | Mounting Hole Width | Style | Maximum Operating Temperature | Mounting Hole Length | Accepts Panel Thickness | Material Flammability Standard | Mounting Method | Leg Height | Minimum Operating Temperature | Material | Overall Width | Distance Between Fixing Holes | Slot Width | Overall Length | UL/CSA Description | Mounting Hole Diameter | Slot Height | Minimum Panel Thickness | Overall Height | Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RSDC-650 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 1377.0 | 1.9 mm | 164.1 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-250 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 38.1 | 1.9 mm | 63.5 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-350 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 63.5 | 1.9 mm | 88.9 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-500 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 101.6 | 1.9 mm | 127.0 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-400 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 76.2 | 1.9 mm | 101.6 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-300 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 50.8 | 1.9 mm | 76.2 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-550 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 114.3 | 1.9 mm | 139.7 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-600 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 127.0 | 1.9 mm | 152.4 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm | |
RSDC-750 | Natural | 4.4 mm | 2.3 | 4.47 mm | 1 | 90 | 5.71 mm | 1.6 mm | UL94 V-2 | Push Fit | 4.3 mm | -40 | Nylon 6/6 | 7.9 mm | 165.1 | 1.9 mm | 190.5 | UL E41871 | 4.57 mm | 3.2 mm | 1.2 | 8.7 mm | 4.4 mm |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
RSDC-650
Color
Natural
Channel Height
4.4 mm
Maximum Panel Thickness
2.3
Mounting Hole Width
4.47 mm
RSDC-250
Color
Natural
Channel Height
4.4 mm
Maximum Panel Thickness
2.3
Mounting Hole Width
4.47 mm
RSDC-350
Color
Natural
Channel Height
4.4 mm
Maximum Panel Thickness
2.3
Mounting Hole Width
4.47 mm
RSDC-500
Color
Natural
Channel Height
4.4 mm
Maximum Panel Thickness
2.3
Mounting Hole Width
4.47 mm
Per page:
1–5 of 13
