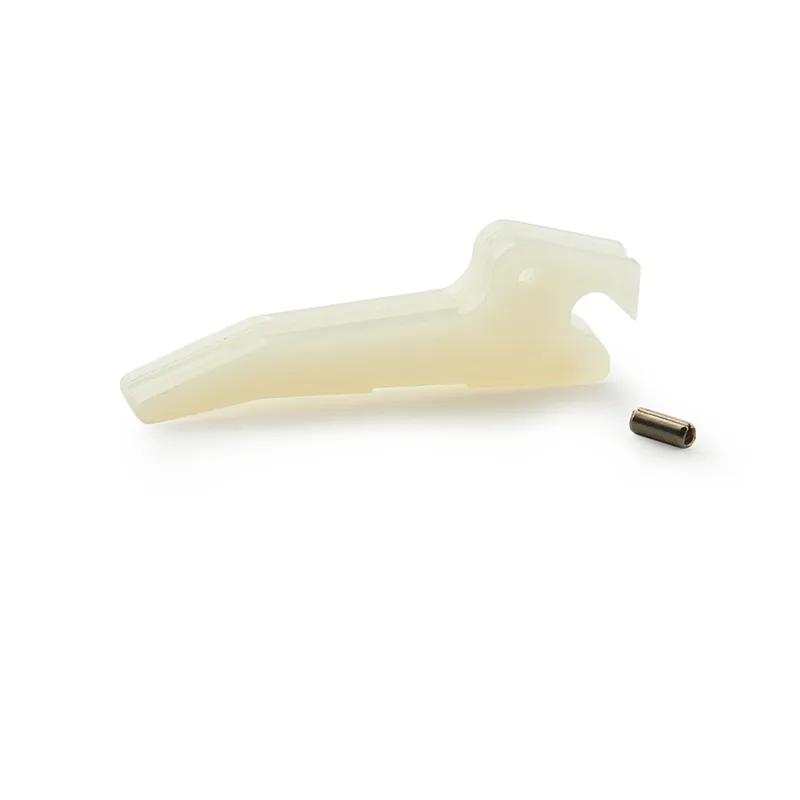

SRR1209 - PCB Inserter/Extractor
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Material Flammability Standard | Color | Mounting Hole to End Width | Style | Panel Thickness | Overall Height | Maximum Operating Temperature | Size | Mount Hole Location (Center to Edge) (Seed) | Minimum Operating Temperature | Material | Pin Hole Diameter | Overall Width | Slot Width | Overall Length | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R1209-062 | UL94 V-2 | Natural | 9.4 mm | 4 | 1.6 | 16.5 | 90 | 4.7 mm | 4.9 x 3.8 x 11.8 mm | -40 | Nylon 6/6 | 3.2 mm | 9.4 | 1.9 mm | 39.4 mm | UL E41938 |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
R1209-062
Material Flammability Standard
UL94 V-2
Color
Natural
Mounting Hole to End Width
9.4 mm
Style
4
