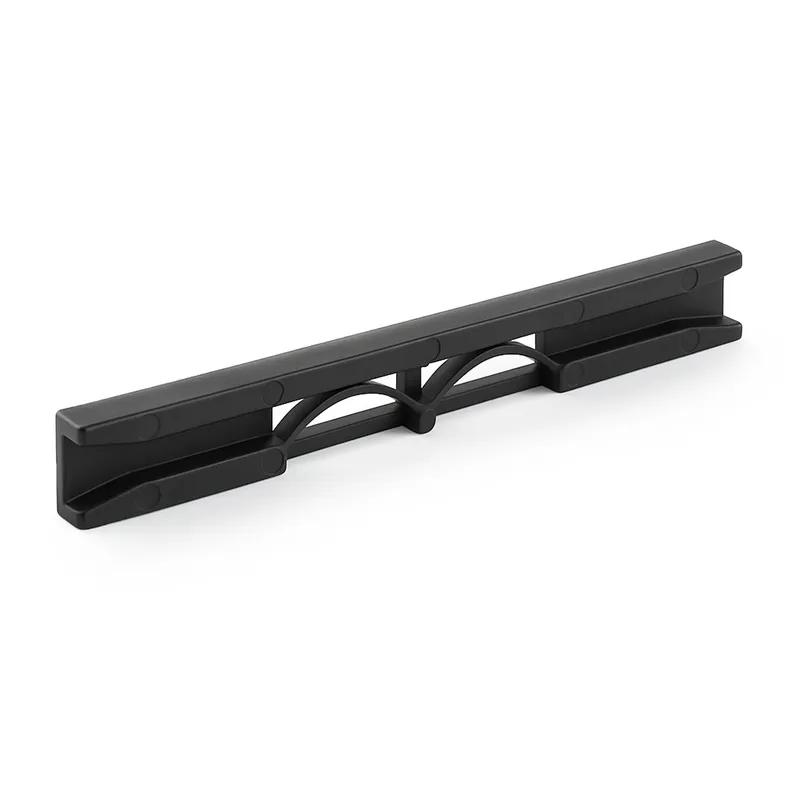

SRMPCGCN - Multi Panel Snap-in Card Guide Nylon and Conductive Nylon
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Overall Length | Maximum Panel Thickness | Maximum Operating Temperature | Mounting Hole Length | Material Flammability Standard | Mounting Method | Accepts Minimum Panel Thickness | Leg Height | Minimum Operating Temperature | Material | Screw Length | Overall Width | Distance Between Fixing Holes | Slot Width | Mounting Hole Diameter | Slot Height | Accepts Maximum Panel Thickness | Mounting Hole Width | Minimum Panel Thickness | Overall Height | Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPCGCN-300 | Black | 76.2 | 2.0 | 60 | 6.35 mm | UL94 V-2 | Push Fit | 0.8 mm | 3.6 mm | 0 | Nylon 6/6 | 2.2 mm | 7.5 | 50.8 | 2.8 mm | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | 7.1 mm | 3.5 mm | |
MPCGCN-550 | Black | 139.7 | 2.0 | 60 | 6.35 mm | UL94 V-2 | Push Fit | 0.8 mm | 3.6 mm | 0 | Nylon 6/6 | 2.2 mm | 7.5 | 114.4 | 2.8 mm | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | 7.1 mm | 3.5 mm | |
MPCGCN-400 | Black | 101.6 | 2.0 | 60 | 6.35 mm | UL94 V-2 | Push Fit | 0.8 mm | 3.6 mm | 0 | Nylon 6/6 | 2.2 mm | 7.5 | 76.2 | 2.8 mm | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | 7.1 mm | 3.5 mm | |
MPCGCN-250 | Black | 63.5 | 2.0 | 60 | 6.35 mm | UL94 V-2 | Push Fit | 0.8 mm | 3.6 mm | 0 | Nylon 6/6 | 2.2 mm | 7.5 | 38.1 | 2.8 mm | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | 7.1 mm | 3.5 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
MPCGCN-300
Color
Black
Overall Length
76.2
Maximum Panel Thickness
2.0
Maximum Operating Temperature
60
MPCGCN-550
Color
Black
Overall Length
139.7
Maximum Panel Thickness
2.0
Maximum Operating Temperature
60
MPCGCN-400
Color
Black
Overall Length
101.6
Maximum Panel Thickness
2.0
Maximum Operating Temperature
60
MPCGCN-250
Color
Black
Overall Length
63.5
Maximum Panel Thickness
2.0
Maximum Operating Temperature
60
