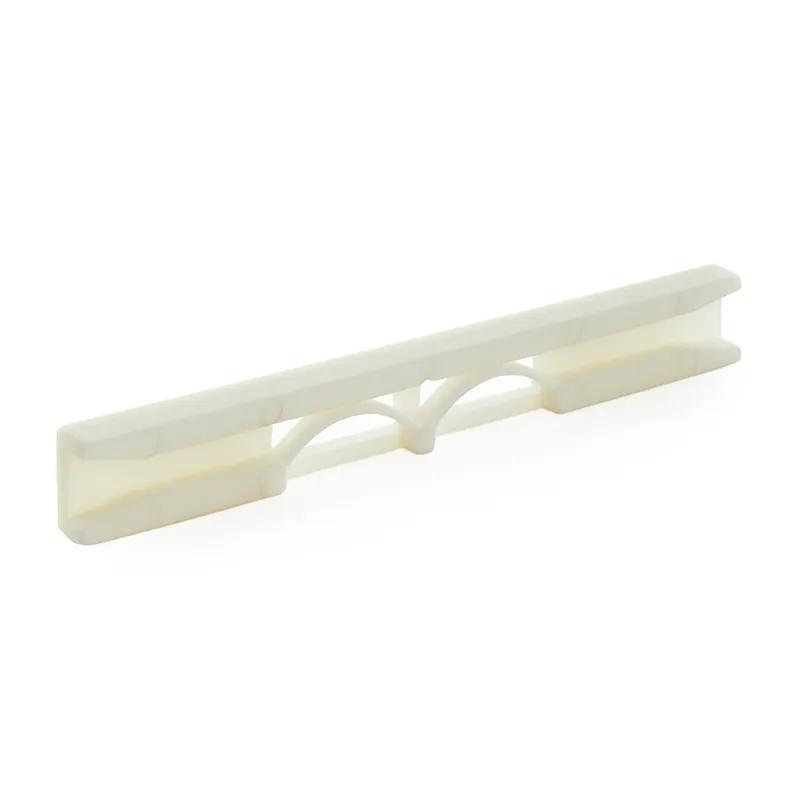

SRMPCG - Multi Panel Snap-in Card Guide Nylon and Conductive Nylon
Showing 1-4 of 4
Per page:1-4 of 4
Item Code | Color | Maximum Panel Thickness | Overall Height | Maximum Operating Temperature | Mounting Hole Length | Material Flammability Standard | Mounting Method | Accepts Minimum Panel Thickness | Leg Height | Minimum Operating Temperature | Material | Screw Length | Overall Width | Distance Between Fixing Holes | Slot Width | Overall Length | UL/CSA Description | Mounting Hole Diameter | Slot Height | Accepts Maximum Panel Thickness | Mounting Hole Width | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MPCG-300 | Natural | 2.0 | 7.1 mm | 110 | 6.35 mm | UL94 V-0 | Push Fit | 0.8 mm | 3.6 mm | -40 | Nylon 6/6 | 2.2 mm | 7.5 | 50.8 | 2.8 mm | 76.2 | UL E70062 | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | |
MPCG-550 | Natural | 2.0 | 7.1 mm | 110 | 6.35 mm | UL94 V-0 | Push Fit | 0.8 mm | 3.6 mm | -40 | Nylon 6/6 | 2.2 mm | 7.5 | 114.4 | 2.8 mm | 139.7 | UL E70062 | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | |
MPCG-250 | Natural | 2.0 | 7.1 mm | 110 | 6.35 mm | UL94 V-0 | Push Fit | 0.8 mm | 3.6 mm | -40 | Nylon 6/6 | 2.2 mm | 7.5 | 38.1 | 2.8 mm | 63.5 | UL E70062 | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 | |
MPCG-400 | Natural | 2.0 | 7.1 mm | 110 | 6.35 mm | UL94 V-0 | Push Fit | 0.8 mm | 3.6 mm | -40 | Nylon 6/6 | 2.2 mm | 7.5 | 76.2 | 2.8 mm | 101.6 | UL E70062 | 4.75 mm | 3.5 mm | 2.0 mm | 4.62 mm | 0.5 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
MPCG-300
Color
Natural
Maximum Panel Thickness
2.0
Overall Height
7.1 mm
Maximum Operating Temperature
110
MPCG-550
Color
Natural
Maximum Panel Thickness
2.0
Overall Height
7.1 mm
Maximum Operating Temperature
110
MPCG-250
Color
Natural
Maximum Panel Thickness
2.0
Overall Height
7.1 mm
Maximum Operating Temperature
110
MPCG-400
Color
Natural
Maximum Panel Thickness
2.0
Overall Height
7.1 mm
Maximum Operating Temperature
110
