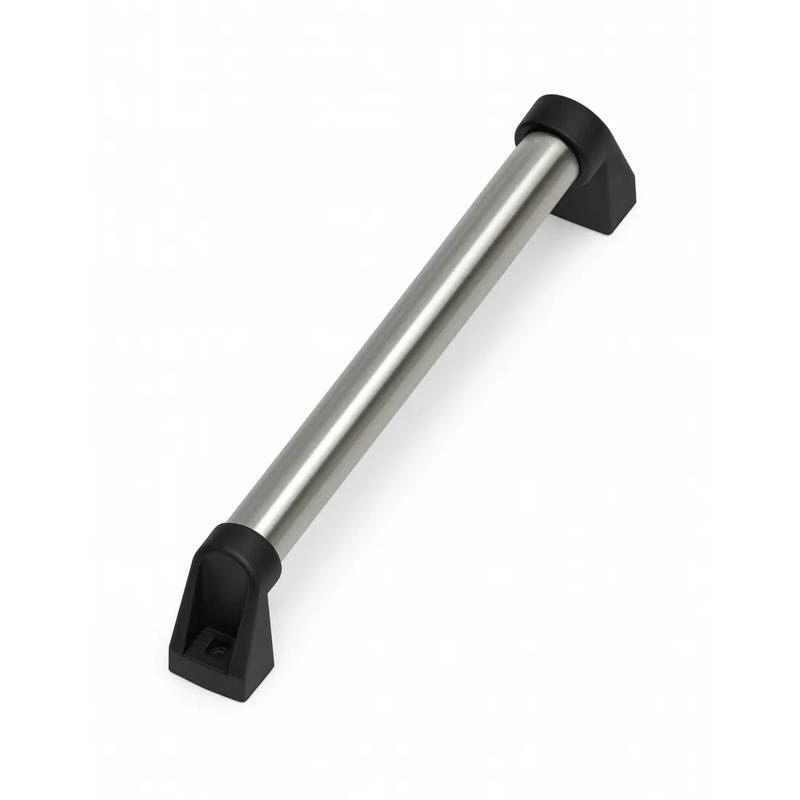

SR487 - Tubular Handles
Showing 1-7 of 7
Per page:1-7 of 7

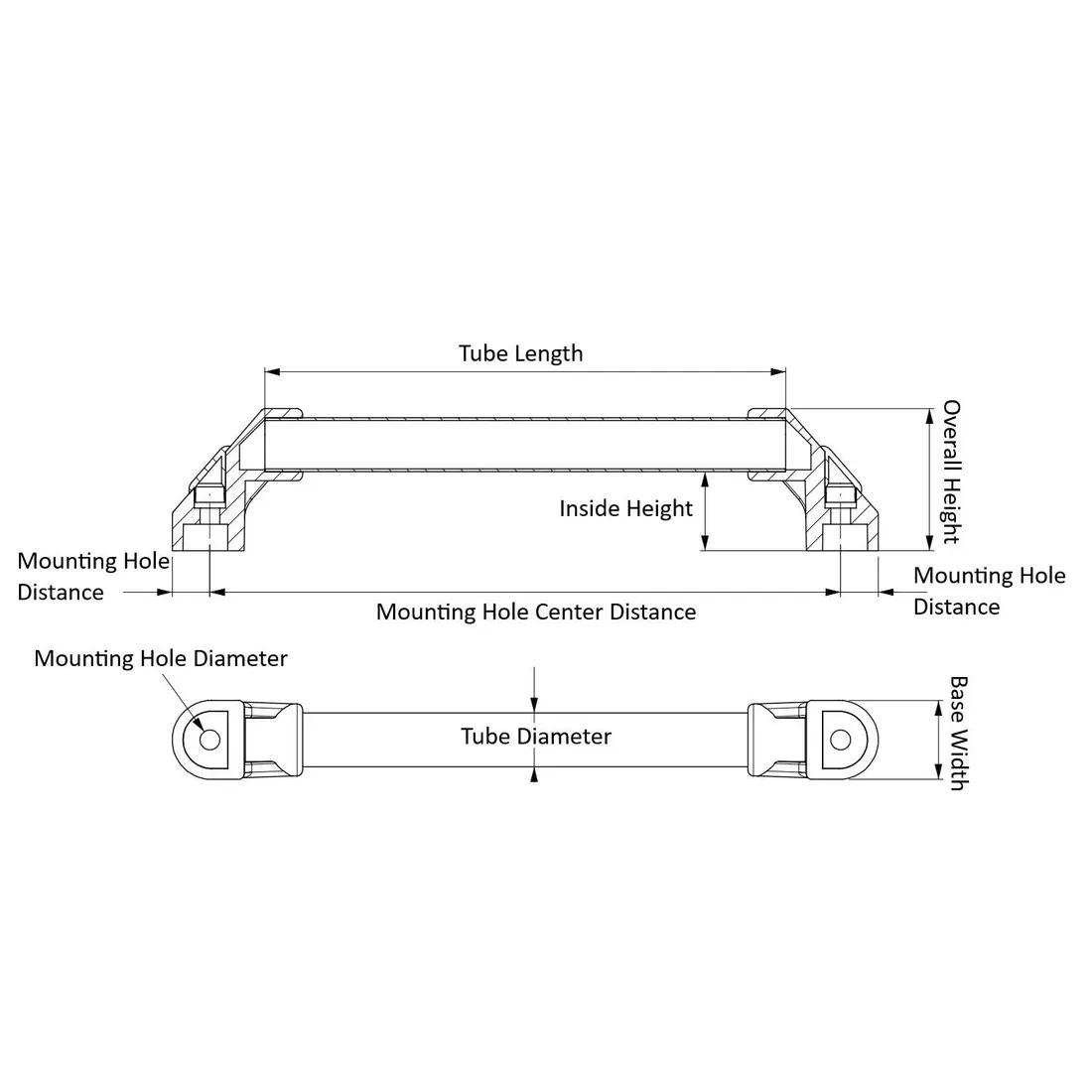

Item Code | Color | Inside Height | Tube Diameter | Thread Size | Overall Length | Handle Material | Mounting Hole Diameter | Handle Type | Handle Finish | Bar End Material | Mounting Hole Center Distance | Overall Height | Base Width | Tube Length | Mounting Hole Distance | Handle Shape | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
487700 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 721.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 700.0 mm | 80.0 | 44.0 | 698.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
487800 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 821.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 800.0 mm | 80.0 | 44.0 | 798.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
487400 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 421.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 400.0 mm | 80.0 | 44.0 | 398.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
487500 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 521.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 500.0 mm | 80.0 | 44.0 | 498.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
487600 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 621.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 600.0 mm | 80.0 | 44.0 | 598.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
4871000 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 1021.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 1000.0 mm | 80.0 | 44.0 | 998.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole | |
487300 | Silver | 45.0 mm | 30.0 mm | 0.433 in Through Hole | 321.0 | Stainless Steel | 11.0 mm | Tubular Handle | No Finish | Nylon | 300.0 mm | 80.0 | 44.0 | 298.0 mm | 21.0 mm | Round Bar | Front Install Counterbored Through Hole |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
487700
Color
Silver
Inside Height
45.0 mm
Tube Diameter
30.0 mm
Thread Size
0.433 in Through Hole
487800
Color
Silver
Inside Height
45.0 mm
Tube Diameter
30.0 mm
Thread Size
0.433 in Through Hole
487400
Color
Silver
Inside Height
45.0 mm
Tube Diameter
30.0 mm
Thread Size
0.433 in Through Hole
487500
Color
Silver
Inside Height
45.0 mm
Tube Diameter
30.0 mm
Thread Size
0.433 in Through Hole
Per page:
1–5 of 8
