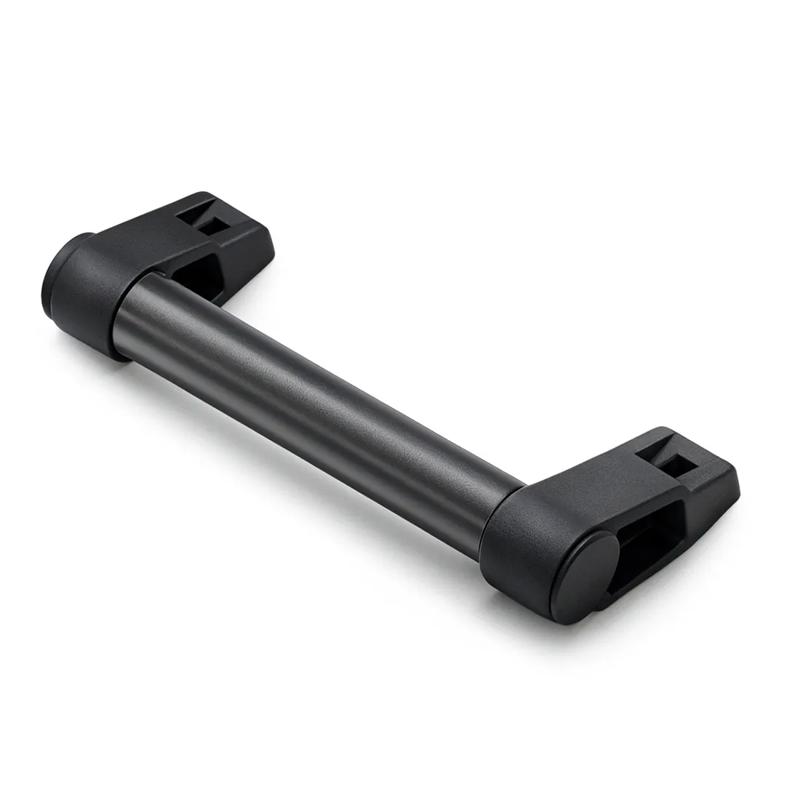

SR387 - Tubular (Offset) Handles
Showing 1-7 of 7
Per page:1-7 of 7

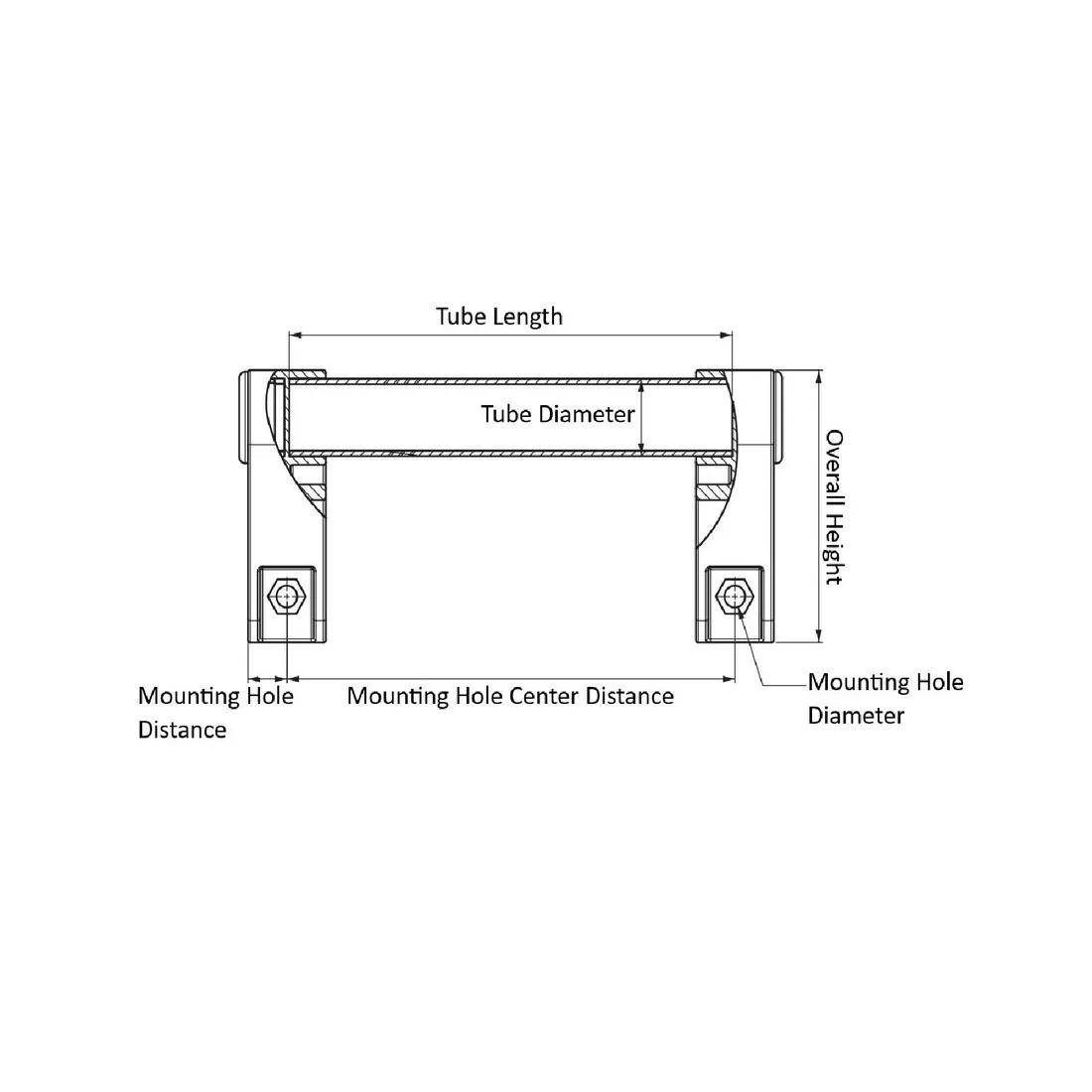

Item Code | Color | Tube Diameter | Overall Length | Handle Material | Tube Length | Mounting Hole Diameter | Handle Type | Handle Finish | Bar End Material | Mounting Hole Center Distance | Overall Height | Thread Size | Material | Mounting Hole Distance | Handle Shape | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
387300 | Black | 30.0 mm | 332.0 mm | Steel | 298.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 300.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
387400 | Black | 30.0 mm | 432.0 mm | Steel | 398.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 400.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
387700 | Black | 30.0 mm | 732.0 mm | Steel | 698.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 700.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
387600 | Black | 30.0 mm | 632.0 mm | Steel | 598.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 600.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
387500 | Black | 30.0 mm | 532.0 mm | Steel | 498.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 500.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
3871000 | Black | 30.0 mm | 1032.0 mm | Steel | 998.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 1000.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole | |
387800 | Black | 30.0 mm | 832.0 mm | Steel | 798.0 mm | 8.5 mm | Round Bar Handle | No Finish | Nylon | 800.0 mm | 106.5 mm | 8.5 mm Through Hole | GF PA;Steel | 16.0 mm | Round Bar | Front Counterbored Through Hole |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
387300
Color
Black
Tube Diameter
30.0 mm
Overall Length
332.0 mm
Handle Material
Steel
387400
Color
Black
Tube Diameter
30.0 mm
Overall Length
432.0 mm
Handle Material
Steel
387700
Color
Black
Tube Diameter
30.0 mm
Overall Length
732.0 mm
Handle Material
Steel
387600
Color
Black
Tube Diameter
30.0 mm
Overall Length
632.0 mm
Handle Material
Steel
Per page:
1–5 of 8
