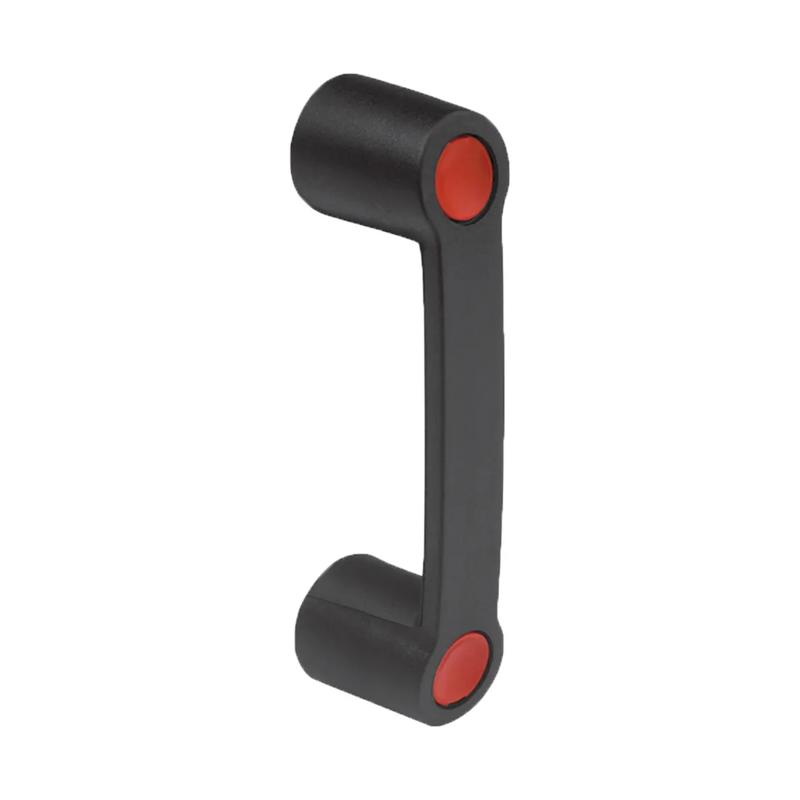

SRHBS - Bridge Handles
Showing 1-3 of 3
Per page:1-3 of 3

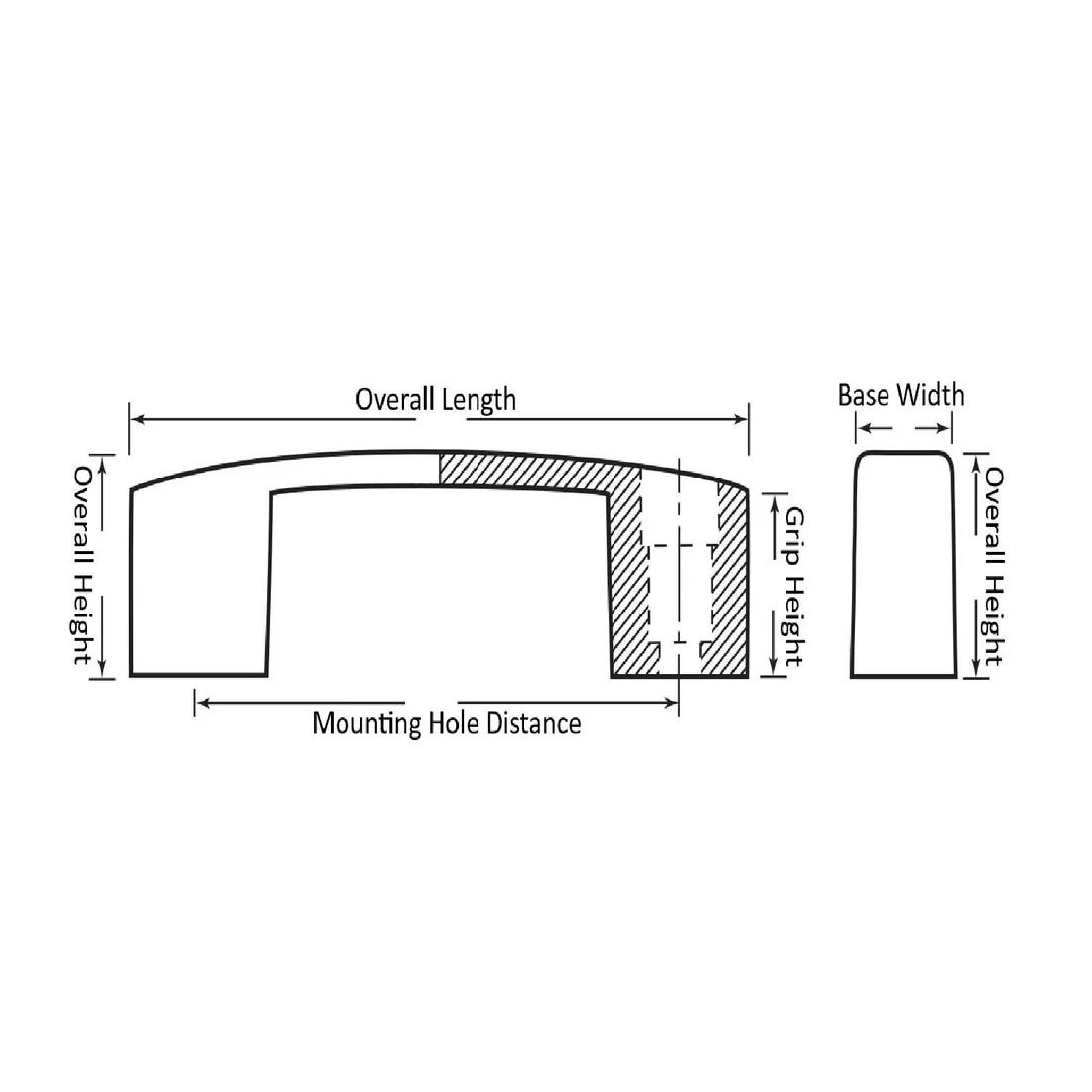

Item Code | Color | Thread Size | Overall Width | Overall Length | Handle Material | Base Width | Handle Style | Overall Height | Type | Handle Color | Grip Height (Seed) | Mounting Hole Distance | Mount Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HBS0120A | Black | 5/16-18, M8 | 31.0 mm | 163.0 mm | Nylon | 1.220 in | Type 1 | 45.0 mm | Pull Handle | Black | 38.0 mm | 132.0 mm | Front Counterbored Through Hole | |
HBS0100A | Black | 1/4-20, 5/16-18, M6 | 26.0 mm | 119.5 mm | Nylon | 1.024 in | Type 1 | 35.0 mm | Pull Handle | Black | 29.0 mm | 93.4 mm | Front Counterbored Through Hole | |
HBS0110A | Black | 5/16-18, M8 | 29.0 mm | 145.0 | Nylon | 29.0 | Type 1 | 40.0 mm | Pull Handle | Black | 34.0 mm | 117.0 mm | Front Counterbored Through Hole |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
HBS0120A
Color
Black
Thread Size
5/16-18, M8
Overall Width
31.0 mm
Overall Length
163.0 mm
HBS0100A
Color
Black
Thread Size
1/4-20, 5/16-18, M6
Overall Width
26.0 mm
Overall Length
119.5 mm
HBS0110A
Color
Black
Thread Size
5/16-18, M8
Overall Width
29.0 mm
Overall Length
145.0
