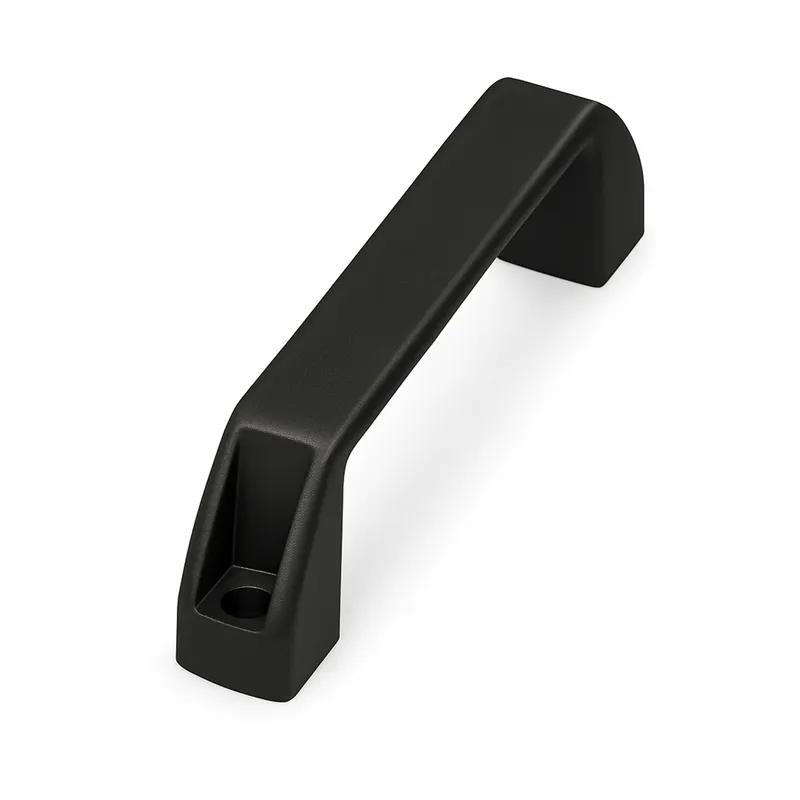

SR186 - Bridge Handles
Showing 1-2 of 2
Per page:1-2 of 2

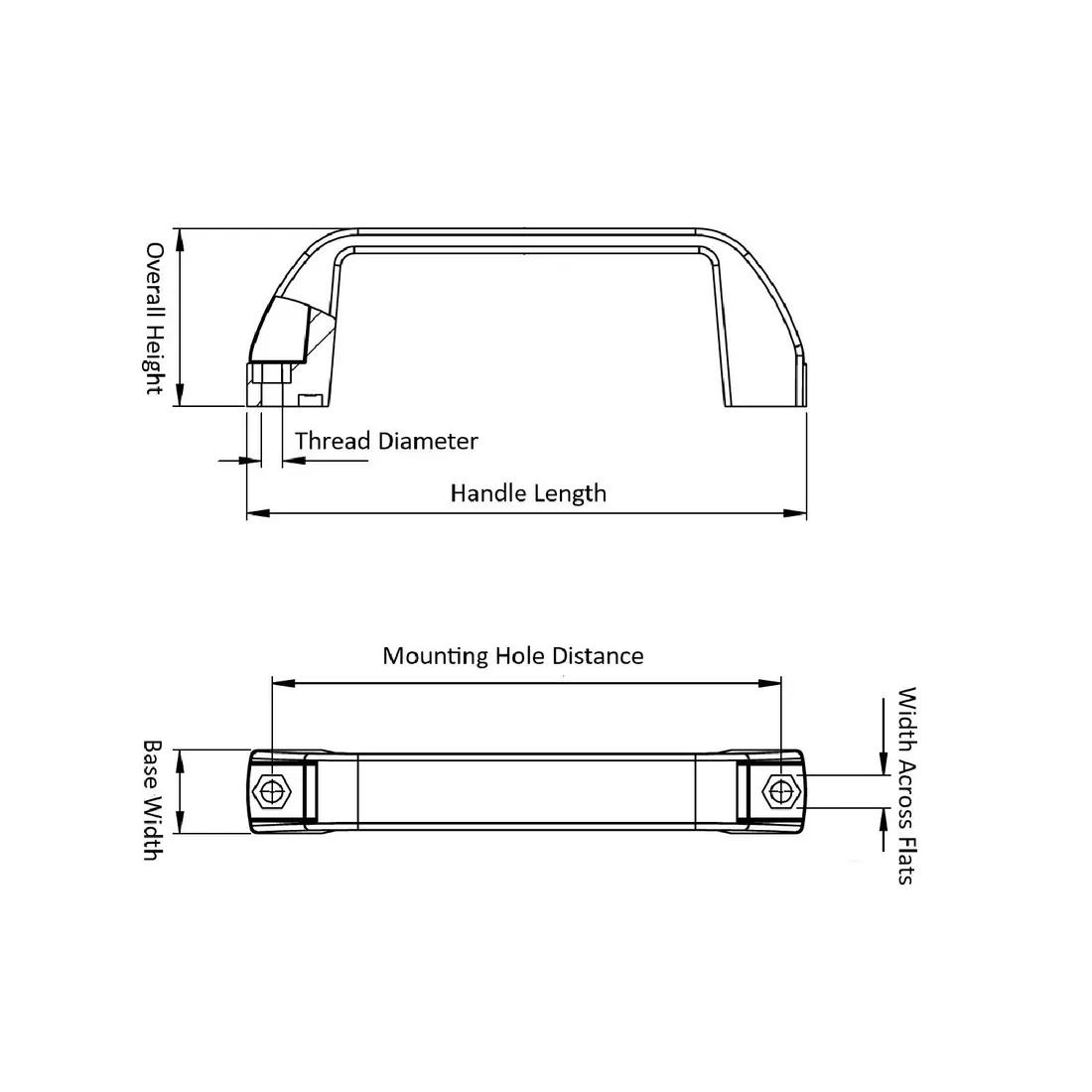

Item Code | Color | Handle Thickness | Overall Length | Handle Material | Base Width | Mounting Hole Diameter | Handle Style | Handle Color | Overall Height | Handle Finish | Screw Head Diameter | Mounting Hole Distance | Handle Shape | Mount Type | Width Across Flats | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1862 | Black | 7.5 mm | 173.0 mm | Nylon 6 | 25.0 mm | 12.0 mm | Bridge | Black | 53.5 mm | No Finish | 25.0 mm | 152.0 mm | Rectangular Bar | Front Counterbored Through Hole | - | |
1861 | Black | 7.5 mm | 173.0 mm | Nylon 6 | 25.0 mm | 6.8 mm | Bridge | Black | 53.5 mm | No Finish | 25.0 mm | 152.0 mm | Rectangular Bar | Front Counterbored Through Hole | 10.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
1862
Color
Black
Handle Thickness
7.5 mm
Overall Length
173.0 mm
Handle Material
Nylon 6
1861
Width Across Flats
10.0 mm
Color
Black
Handle Thickness
7.5 mm
Overall Length
173.0 mm
